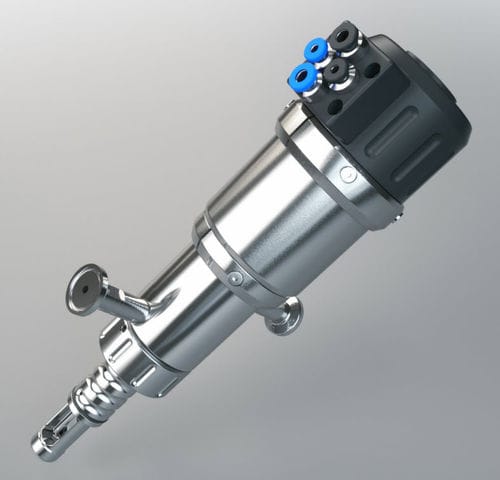

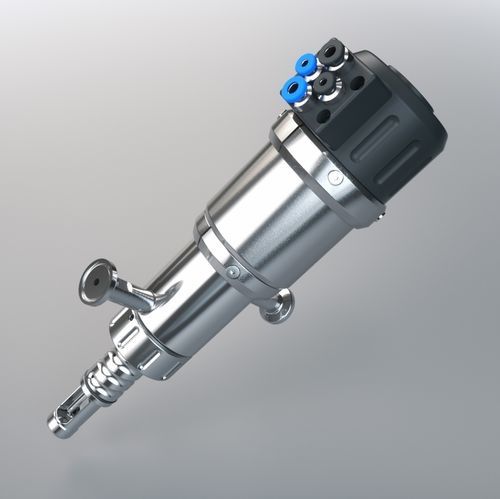

Retractable probe housing EXtract 830

pneumatic

Description
EXtract 830 is a pneumatically operated retractable probe housing made of stainless steel in hygienic design to be attached on process tanks or tubing. The drive unit inserts the sensor into the process medium and back into the cleaning chamber. When reaching the final position of the “measuring” or “service” position a pneumatic position signal responds automatically. Cleaning, rinsing and calibration of the sensor is possible while the process is running.

Your advantages

• Hygienic design, EHEDG- / 3A-approved process connections
• Extension of sensor lifetime and reduction of maintenance efforts
• Automatic safety lock when sensor is removed
• Plug and play installation with colour- and size-coded connection system
• Integrated limit switches
• Usable in ATEX areas
• AISI 316L / 1.4404, surface finish < Ra 0.78 µm, electropolished
• Wide variety of process connections and sealing materials
• Up to 16 bar and 140 °C
• Can be fully automated with the electropneumatic control unit EXmatic 470
• Drive unit free of maintenance

Applications

• For all kinds of Ø12–225 mm sensors or Ø12–280 mm liquid-filled sensors with thread PG13.5 (pH glass and ISFET sensors, conductivity or temperature sensors, turbidity and other optical sensors)
• Food industry
• Pharmaceuticals
• Hygienic processes requiring automated sensor cleaning or calibration

Configuration options (selectable)

• Material (wetted parts): Stainless steel 1.4404 / 316L
• Sealing material (wetted sealings): EPDM / FEP (FDA/USP VI) or FPM (Viton) / FEP
• Sensor type: 225 mm Ø12 PG13.5 gel-filled; 280 mm Ø12 PG13.5 liquid-filled
• Process connection: Ingold DN25 G1¼" O-Ring position 28 mm; Ingold DN25 G1¼" HyCIP® OP25/50/55 mm; Varivent N DN40–125; TriClamp 1–1.5" (OD Ø50.5 mm); TriClamp 2.0 (OD Ø64 mm); NEUMO BioControl D50; DIN 11851 DN50 (dairy connection)
• Cleaning connection: G 1/8" female thread; G 1/4" female thread; 1/4" NPT female thread
• Position feedback: pneumatic or electrical (NAMUR)

Specifications (table)
Process pressure: 0…16 bar
Process temperature: -10…140 °C
Ambient temperature: -10…70 °C
Sensors: 225 mm Ø12 PG13.5 (also 280 mm Ø12 PG13.5 liquid-filled)
Materials: stainless steel 1.4404 / 316L
Process surface: <Ra 0.78 µm, electropolished
Sealings: EPDM/FEP (FDA USP VI), FPM (Viton)/FEP
Process connection: Ingold DN25 G1¼", HyCIP® OP25/50/55 mm, TriClamp 1–1.5", TriClamp 2", Varivent N DN40–125, Neumo BioControl D50, DIN11851 DN50
Cleaning ports: G1/8", G1/4", FNPT 1/4"
Operating power: compressed air 4...6 bar
Limit switches: pneumatically / electrically, integrated

Characteristics / technical specifications

• Model: EXtract 830 (retractable probe housing, pneumatic, hygienic design)
• Housing material (wetted parts): stainless steel 1.4404 / 316L
• Surface finish: electropolished, < Ra 0.78 µm
• Sealing materials: EPDM/FEP (FDA/USP VI) or FPM (Viton)/FEP
• Sensor acceptance: Ø12–225 mm (also Ø12–280 mm liquid-filled, PG13.5 thread)
• Process connections: Ingold, HyCIP®, TriClamp, Varivent, Neumo, DIN11851
• Operating limits: up to 16 bar, -10…140 °C (process)
• Auxiliary power: compressed air 4…6 bar
• Position feedback: pneumatic or electrical (NAMUR) integrated
• Hygienic design with EHEDG / 3A approved process connections
• ATEX-capable depending on configuration
