turbine mixer / continuous / for flour / stainless steel
MXC-2000-S

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
turbine mixer / continuous / for flour / stainless steel turbine mixer / continuous / for flour / stainless steel - MXC-2000-S
{{requestButtons}}

Characteristics

  • Technology:

    turbine

  • Batch/continuous:

    continuous

  • Application domain:

    for flour

  • Other characteristics:

    stainless steel, kneader

Description

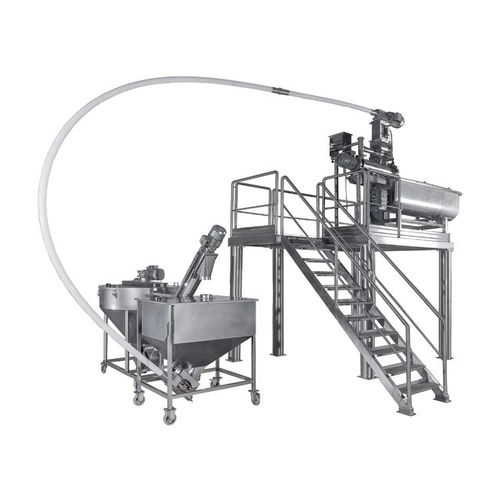

CONTINUOUS KNEADER WITH SINGLE BASIN 1000/1500 Kg/h EQUIPPED WITH PREMIX Treatment group for the production in continuous of dough realised with criteria of hygienic design, formed by the following functional parts:

Doser of bran/flour
Turbo mixer
Hydration basins

The installation of dough is equipped with a control unit formed by a PLC and an operator panel that consents to monitor and change all the production parameters.

CONSTRUCTION CHARACTERISTICS
Premix Mod. “FTC “
• Production until 1500 kg/h of fresh product (ingredients: water, egg, flour).
• Completely made of stainless steel AISI 304.
• Mixing corps in holed bar made of stainless steel AISI 304 with high thickness electro-polished internally and externally, equipped with clamp attaches for flour, eggs and water.
• Mixing reel with shovels with a special profile, easily extractible made of stainless steel AISI
304.
• Anterior door made of stainless steel AISI 304 hinged and opening equipped with security
magnetic sensor.
• Supports with bearings watertight sealed and distanced by the mixing corps to avoid every
contact with the dough.
• Motorization at direct transmission distanced from the mixing cylinder.
• Attach for the entrance of flours, with receiving basin, equipped with levels of control MIN - MAX, warning siren for the lack of flour and breakinglamp shaker.
• Doser made of stainless steel for flours volumetric with precision cochlea, commanded by a gearbox activated by an inverter.
