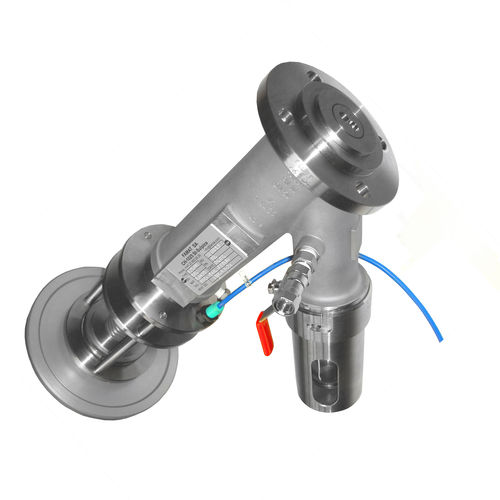

Piston valve 125NIR manualsamplinglaboratory
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- manual
- Function
- sampling
- Applications
- laboratory
- Material
- titanium, Hastelloy®, stainless steel
- DN
50 mm
(1.969 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 180 °C
(356 °F)
Description
125NIR – Near Infrared
At the top of the piston, the 125NIR valve (FIG. 1 ) has a scraper which allows installation of a fiberoptic probe (FIG. 2 ).
This probe, ideally located, permit to monitor several parameters such as temperature, humidity… and / or composition of the product before taking physically the sample, transmitted by fiberoptic to the connector.
A second hole, on the scraper (FIG. 2 ), is made nearby the fiberoptic probe for the cleaning system (Nitrogen) as shown on the picture.
The measuring probe (not shown on picture) can be cleaned through a nozzle with Nitrogen.
Thanks to our partners specialized in laboratory instrumentation, we are able to provide any specific solution for the customer processes.
