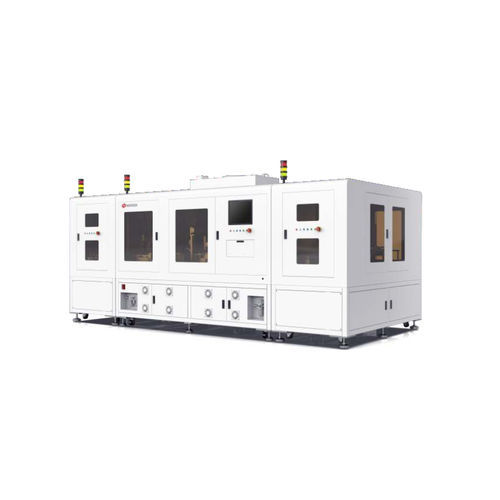

Laser welding line

continuousfully-automaticautomated

Product Overview
HGTECH automatic battery vent laser welding line is designed for automatic assembly, laser welding and handling of round and square cover burst discs used as battery vents. Multiple independent stations form a complete production line integrating automatic feeding, assembly, welding and inline inspection for continuous, traceable production.

Key features

• Fully automatic modular line enabling unmanned operation
• MES integration for production control and data traceability
• High throughput with low downtime

Technical Parameters

• UPH: 1700 pcs/h
• Yield rate: up to 99% (typical in-line yield 97.5% depending on product)
• Downtime: < 2%
• Scrap rate: < 1%
• Dimensions (L×W×H): 4730 × 3000 × 1900 mm
• Support: 1 year warranty, lifetime maintenance
• Information control: MES integration / data traceability

Typical Application & Product Features

• Configurable for automatic, single-station or semi-automatic man–machine operation; supports quick manual/automatic changeover for flexible production
• Designed for continuous unmanned production to reduce labor and manufacturing costs
• Throughput up to 1700 UPH with high compatibility and expandability according to customer product requirements
• Operator-friendly HMI and low operation & maintenance costs

Specifications

• UPH: 1700 pcs/h
• Yield rate: up to 99% (typical 97.5%)
• Downtime: < 2%
• Scrap rate: < 1%
• Dimensions (L×W×H): 4730 × 3000 × 1900 mm
• Support: 1 year warranty; lifetime maintenance
• Control: MES integration / data traceability
