Laser welding machine

automatic

Overview

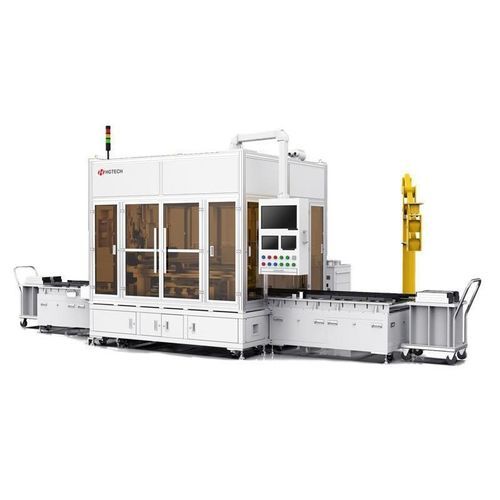

Laser welding system for busbars used in prismatic lithium battery modules. Designed for inline integration with production lines, with MSE docking and data traceability. Quality monitoring is handled by CCD and laser rangefinder; supports laser wire filling and panel cleaning operations.

Technical parameters

• Capacity: 12 ppm (modules per minute)
• Downtime: <2%
• Defect (tossing) rate: <1%
• Overall size: 5000×2100×1900 mm
• Warranty: 1 year; lifetime support
• Information control: MSE docking / data traceability

Applications & Key features

• Specifically developed for prismatic lithium battery module busbar welding
• Laser rangefinder and CCD monitoring ensure weld positioning and quality
• Inline automated operation adaptable to different module designs
• Low operating and maintenance requirements
• Consistent weld strength and good electrical conductivity of joints

Customer cases

• Ningde Times BMW project — battery module frame welding including laser wire filling and internal/external panel cleaning
• SAIC-GM project — automotive power battery module busbar welding using laser scanning
• Cadillac — automotive power battery module busbar welding

Technical specifications (summary)

• Capacity: 12 ppm
• Downtime: <2%
• Defect rate: <1%
• Dimensions: 5000×2100×1900 mm
• Warranty: 1 year; lifetime support
• Integration: MSE docking, data traceability
