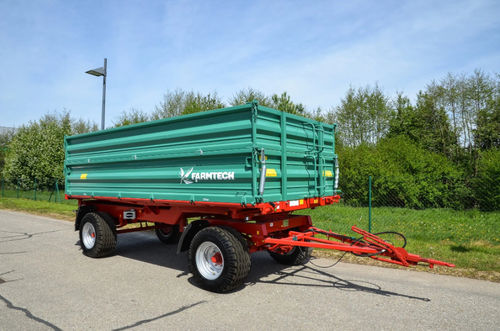

Equipment trailer ZDK 800

2-axleprofileagricultural

For maximum transport service under strict preconditions the ZDK double-axle tipping trailer is extremely suitable. The sturdy frame and the bridge frame are designed for high burdens and provide maximum torsional stiffness. The parabolic suspension and the wide track provide an even load on the axes on extremely fast drives. At the same the standard safety of the tipping is getting higher. The large palette of ZDK models offers with a load volume from 10 to 30 m3 for almost all agricultural goods an excellent transport solution. Optional equipment versions like hydraulic openings of the sidewalls or a side chute increase the operating comfort. Sturdy frame made from steel square tube 220 x 120 x 6 mm, trapezoidal tipping frame, parabolic springs, strong ball rim bearing 1010 mm, drawbar with height adjustment, preparation for trailer coupling, underride guard with commercial LED road lighting system, rear socket, rear wall support, wheel chocks Two heavy duty FAD-axles with 6-stud rims, track 1740 mm, axle load 7500 kg/axle at 25 km/h and 6600 kg/axle at 40 km/h, brake cam 300 x 90 mm Overrunning brake with system for reverse driving, working on all wheels (2 brake axles) The floor made of 4 mm steel plate, plugged corner stanchions, steel sideboards and extension boards (FUHRMANN profile) with quick shutters, swinging and collapsible boards opening, central locking lever (left-right- rear), grain release with lever, sideboard lifting springs (left and right with carrier), access ladder according to accident prevention regulation (UW)
