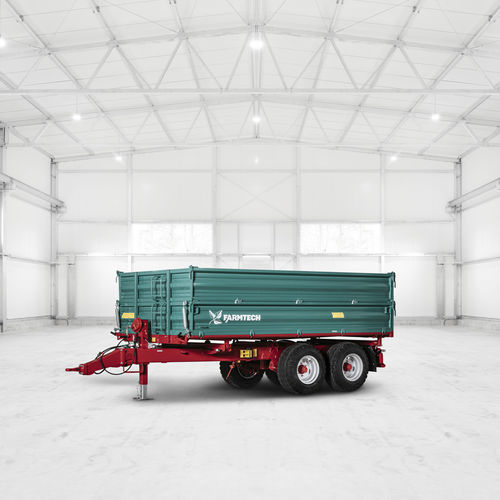

Platform trailer TDK 900

tandemprofilelifting

To provide safe transport of high payloads on difficult terrain it requires the convincing features of our TDK three-side tandem trailer. Through its compact building method the driving unit enables high manoeuvrability and ensures above all maximal stability and safety when loading, discharging and driving. The especially low platform height, height-adjustable tow bar and efficient brakes provide the maximum driving comfort and safety at high speed. With its various equipment versions the TDK model is the best transport solution for beginners as well as experienced professionals. Sturdy f rame made f rom steel square tube 220 x 80 x 8 mm, trapézoïdal tipping frame, tandem châssis with parabolic springs mounted below, high drawbar hitch with fixtowing eye D40 mm, landing gears (with gear box, double speed, three-stages), préparation for trai 1er coupling, underride guard with commercial LED road lighting system, rear socket, rear wall support, wheel chocks Two heavy duty ADR-axIes with 6-stud rims, trackl650 mm, wheelbase 990 mm, axle load 6700 kg/axle at 25 km/h and 6000 kg/axle at 40 km/h, brake cam 300 x 90 mm Dual line air brake installation (sélection according to country) The floor made of 4 mm steel plate, plugged corner stanchions, steel sideboards and extension boards (FUHRMANN profile) with quickshutters, swinging and collapsible boards opening, central locking lever (left-right- rear), grain release with lever, sideboard lifting springs (left and right with carrier), access ladder according to accident prévention régulation (UW)
