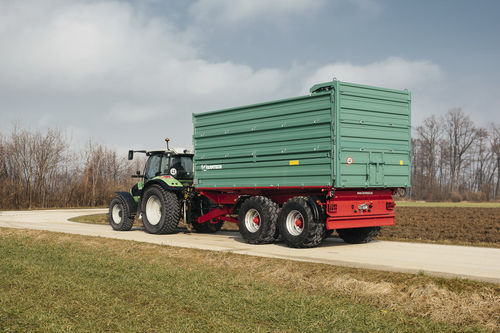

Equipment trailer TDK 2000

platformprofiletandem

To provide safe transport of high payloads on difficult terrain it requires the convincing features of our TDK three-side tandem trailer. Through its compact building method the driving unit enables high manoeuvrability and ensures above all maximal stability and safety when loading, discharging and driving. The especially low platform height, height-adjustable tow bar and efficient brakes provide the maximum driving comfort and safety at high speed. With its various equipment versions the TDK model is the best transport solution for beginners as well as experienced professionals. Sturdy frame made f rom steel square tube 300 x 100 x 6 mm, trapézoïdal tipping frame, tandem châssis with parabolic springs mounted below, high drawbar hitch with fixtowing eye D40 mm, landing gears (with gear box, double speed, three-stages), préparation for trai 1er coupling, underride guard with commercial LED road lighting system, rear socket, rear wall support, wheel chocks Two heavy duty ADR-axIes with 10-stud rims, trackl850 mm, wheelbase 1200 mm, axle load 10800 kg/axle at 25 km/h and 12000 kg/axle at 40 km/h, brake cam 406 x 120 mm Dual line air brake installation with ALB (sélection according to country) The floor made of 5 mm steel plate, plugged corner stanchions, steel sideboards and extension boards (FUHRMANN profile) with quickshutters, swinging and collapsible boards opening, central locking lever (left-right- rear), grain release with lever, sideboard lifting springs (left and right with carrier), extension triangles 400 mm (front and rear), conical body, access ladder according to accident prévention régulation (UW)
