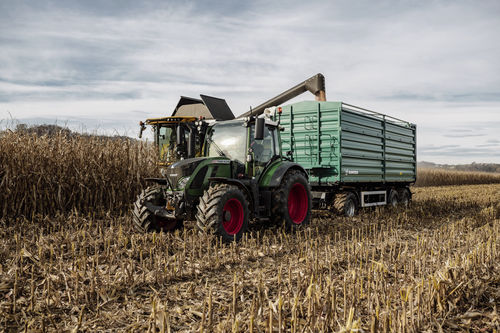

Profile trailer DDK 2400

rim3-axlehandling

A high-performance transport technology with high capacity, highest operating comfort and long working life is the basis of modern agriculture. The model DDK meets the highest demands in terms of quality, performance and features. The DDK tipper is especially suitable for long transport distances and convinces with extremely large load capacity, fast and easy loading and discharge, simple handling and maximum safety. Sturdy frame made f rom steel square tube 260 x 140 x 14,2 mm, trapézoïdal tipping frame, parabolic springs, strong bail rim bearing 1100 mm, drawbar with height adjustment, préparation for trailer coupling, underride guard with commercial LED road lighting system, rear socket, rear wall support, wheel chocks Three heavy duty ADR-axIes with 10-stud rims, trackl950 mm, axle load 13000 kg/axle, brake cam 406 x 120 mm Dual line air brake installation with ALB (sélection according to country) The floor made of 5 mm steel plate, plugged corner stanchions, steel sideboards and extension boards (FUHRMANN profile) with quickshutters, swinging and collapsible boards opening, central locking lever (left-right- rear), grain release with lever, sideboard lifting springs (left and right with carrier), conical trailer box for easier unloading, extension triangles 400 mm (front and rear), access ladder according to accident prévention régulation (UW)
