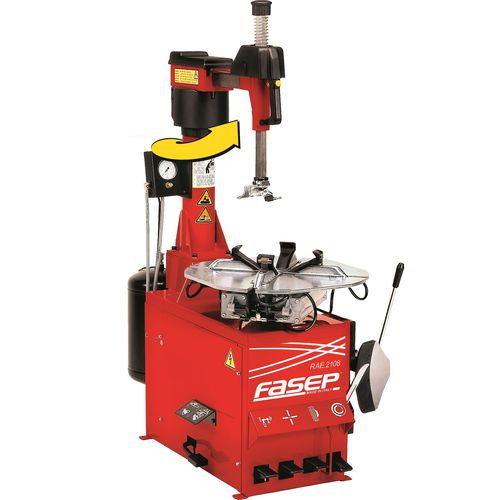

Car tire changer RAE.2108

for motorcyclesautomaticvertical

Automatic up to 23" RAE.2108 is an automatic tire changer suitable for car and motorcycle wheels having rim size from 10" to 23" with pneumatic swing arm movement. Solidity and reliability are the keywords for this tire, which, thanks to the particular movement of the arm, ensure exceptional rigidity, especially useful for mounting low profile tires. Technical Features - Automatic Tire Changer - Suitable for Car, Vans, SUVs and Light Trucks wheels - Self-centering turntable with 4 clamps and 2 cylinders - Steel Plate thickness 12mm - 1 speed Motor - Vertical arm with side rotation (pneumatic swing) - Pneumatic lock of the mounting head - Bead-breaker with single-effect cylinder - Free-moving bead breaker tool - Traditional Mounting / demounting head with built in protections for alloy rims - Tire inflation gun with manometer gauge - Set of plastic protections for alloy rims - Tire Lever - 36 mm hexagonal shaft - Air lubricator (automatic) - Grease container and brush - Inflation pressure limiter (4 bar) - Bead breaking force 2800 kg - Max rotation torque 1,08 kN (110Kgm) - Rim max diam. 10-23" - Max wheel diam 1000 mm (39") - Max rim width 320 mm (12,5") - Noise < 70 dB (A) - Standard accessories in details
