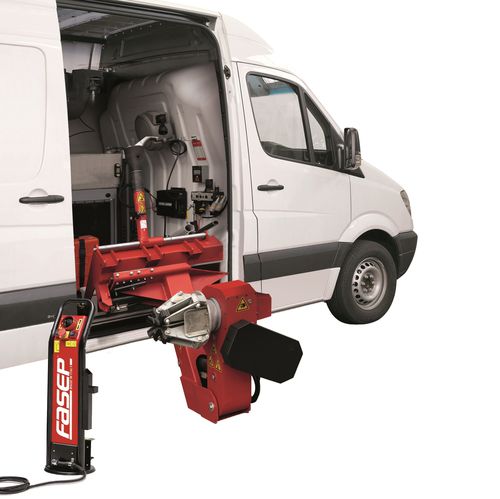

Truck tire changer RGU.2671.Mobile

automatichorizontalelectro-hydraulic

Automatic tire changer for mobile truck service (intensive use). Suitable for tubeless wheels. Self-centering 4-arm hydraulic chuck. 1-speed engine. Clockwise and anticlockwise rotation of the spindle. Universal tool. Hydraulic movement of the spindle arm (right-left). Hydraulic lifting of the spindle arm (up and down). Manual movement of the tool arm (left - right). Tool changer with manual lifting and rotation. Technical Features - Automatic Truck Tyre Changer for Mobile service on Trucks and Buses (intensive use) - Special for tubeless wheels - Self-centering hydraulic chuck with 4 clamping jaws - 1 speed Motor - Clockwise and anticlockwise rotation of the chuck - Universal toolhead - Mobile Chuck Arm with hidraulic motion (left-right) - Hidraulic lifting of chuck up-down - Mobile Toolhead Arm with manual movement (left-right) - Toolhead with manual lifting and rotation - Mobile remote control (low voltage) - Hydraulic pump motor 1,1 kW (1,5 Hp) - Safety valve on hydraulic circuit - Chuck Gearbox motor 1,1 kW (1,5 Hp) - Spindle shaft working height min 350 mm - Maximum height of installation from the ground (road level) 700 mm - Bead breaking force (in/out) 25kN - Max wheel weight 1000 kg - Rim max diam. 13-26" - Max wheel diam 1380 mm (54") - Max wheel width 600 mm (24") - Noise < 85 dB (A)
