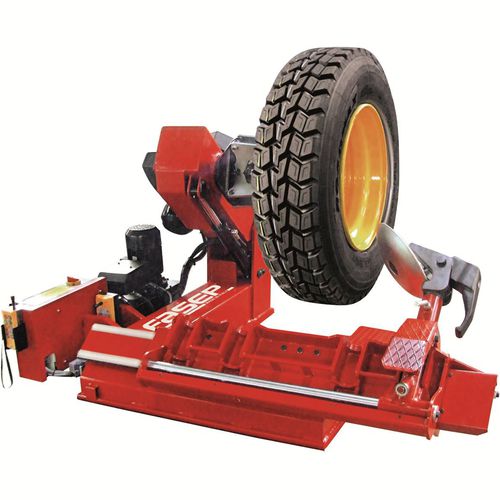

Truck tire changer RGU267.ECO

automatichorizontalelectro-hydraulic

Universal truck tire changer (commercial) is a professional unit, designed for tire service shops with heavy work load of commercial trucks wheels (up to 27"). Technical Features - Automatic Truck Tyre Changer for Trucks - Suitable for groove rims and split ring rims - Suitable for normal and tubeless tires - Self-centering hydraulic chuck with 4 clamping jaws - 1 speed Motor - Clockwise and anticlockwise rotation of the chuck - Universal toolhead - Hidraulic lifting of chuck up-down - Electro-Hydraulic displacement (left right ) of the arm that contains the toolhead. - Toolhead with manual lifting and rotation - Handy remote control (wireless) - Hydraulic pump motor 1,1 kW (1,5 Hp) - Safety valve on hydraulic circuit - Chuck Gearbox motor 1,5 kW (2,0 Hp) - Bead breaking force (in/out) 18.3 kN - Max rotation torque 2,0 Kn - Rim central hole min 135 mm - Max wheel weight 1200 kg - Rim max diam. 14-26" - Max wheel diam 1380 mm (54") - Max wheel width 780 mm (30,5") - Noise < 70 dB (A)
