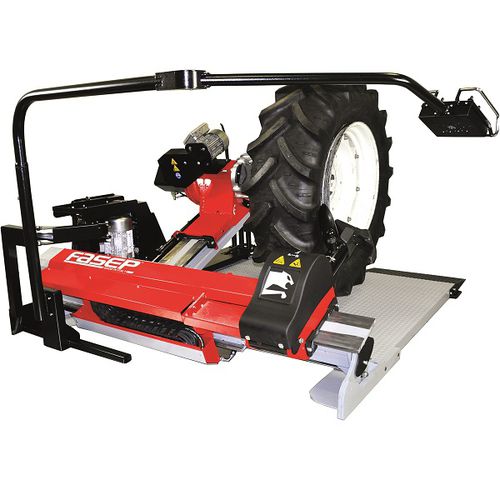

Truck tire changer RGU588E

for agricultural vehiclessuperautomatichorizontal

Super automatic tire changer for trucks, agriculture, earthmoving. Suitable for tubeless. Self-centering 4-arm hydraulic chuck. Variable speed motor (inverter) (allows agri carving). Clockwise and anticlockwise rotation of the spindle. Universal tool. Hydraulic movement of the spindle arm (right-left). Hydraulic lifting of the spindle arm (up and down). Hydraulic translation of tool holder arm (left - right). Tool changer with automatic lifting and rotation. Remote control on console arm. Technical Features - Super Automatic Truck Tyre Changer for Trucks, Agricultural and Earth Moving vehicles - Suitable for normal and tubeless tires - Self-centering hydraulic chuck with 4 clamping jaws - Variable speed motor (inverter) (it allows siping on agri-tires) - Clockwise and anticlockwise rotation of the chuck - Universal toolhead - Mobile Chuck Arm with hidraulic motion (left-right) - Hidraulic lifting of chuck up-down - Electro-Hydraulic displacement (left right ) of the arm that contains the toolhead. - Toolhead with automatic lifting and automatic rotation - Remote control on swing arm - Hydraulic pump motor 4,4 kW (6.0 Hp) - Hydraulic pump with stand-by function - Chuck Gearbox motor 1,5 kW (2,0 Hp) - Spindle shaft working height min 365 mm - Bead breaking force (in/out) 37.6 kN - Max rotation torque 3,6 Kn - Clamping force max 48 kN - Rim central hole min 80 mm - Max wheel weight 2000 kg - Rim max diam. 12-46" (opt. 58") - Max wheel diam 2600 mm (102") - Max wheel width 1530 mm (60") - Noise < 70 dB (A) - Compare features of different models.
