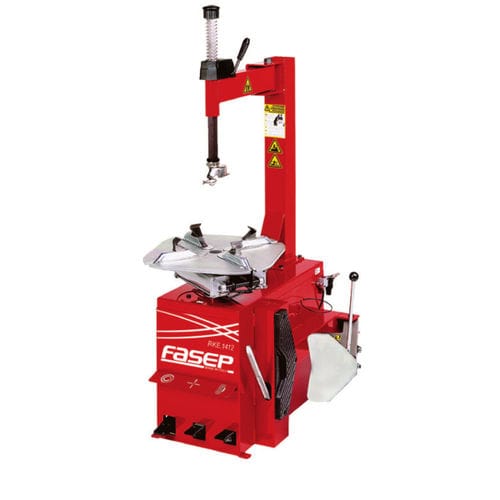

SEMI-AUTOMATIC TIRE CHANGERS having clamping capacity from 10 '' to 21 "(min internal 13", max external 18 ") designed to operate on car wheels, light commercial vehicles and, through an appropriate kit of optional adapters, motorcycle wheels.
Technical Features
- Semiautomatic Tyre Changer
- Suitable for Car, Vans, SUVs and Light Trucks wheels
- Self-centering turntable with 4 clamps and 2 cylinders
- Steel Plate thickness 10mm
- 1 speed Motor
- Swing arm system
- Manual lock of the mounting head
- Bead-breaker with single-effect cylinder
- Free-moving bead breaker tool
- 36 mm hexagonal shaft
- Pressure limiter (max 10 bar)
- Air Lubricator (semiautomatic)
- Bead breaking force 2800 kg
- Rim max diam. 10-20"
- Max wheel diam 1000 mm (39")
- Max rim width 320 mm (12,5")
- Noise < 70 dB (A)
- Standard accessories in details
