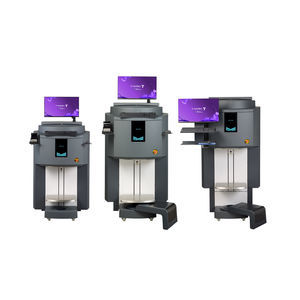

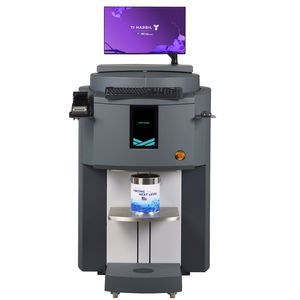

Paint dispenser X-SMART®

automaticcompact

Limited investment Simple & reliable Easy logistics The X-SMART dispenser simplifies automatic tinting for small retail spaces and larger painters alike. Its compact design reduces transport costs, and quick assembly saves time. The modular build ensures easy, cost-effective maintenance. As part of the X-SERIES, the X-SMART offers affordability, reliability, and user-friendly operation—perfect for streamlined daily operations. Features Piston pump technology 16 PP canisters in 2,25 l size Universal and water based colorants Flow rate up to 0,25 l/min 0,077 ml smallest dispense Tubeless design Active nozzle closure HWD 120x83x83 General Automatic sequential Model: X-Smart Colorants: Universal, Water based (LVOC/ ZVOC) Pump System: Patented piston pump Maximum Flow Rate: 7.5 oz/minute Accuracy: 1/384th minimum dispense (colorant dependent) Can Table Manual adjustment with positioning for quart, 1-gallon and 5-gallon containers Power Supply & Safety Dual voltage – 110/220v 50/60Hz UL, CSA, FCC, CE Canisters 16 Canisters Capacity: 2.25 Liter Nozzles Patented airtight valve for low-VOC colorants Dimension & Weight Dimensions: 35″W x 33″D x 47″H Weight: 145 lbs. (empty canisters) Options PrismaPro and Tintelligence software to assist in running paint department. Different options available (see software section for details)
