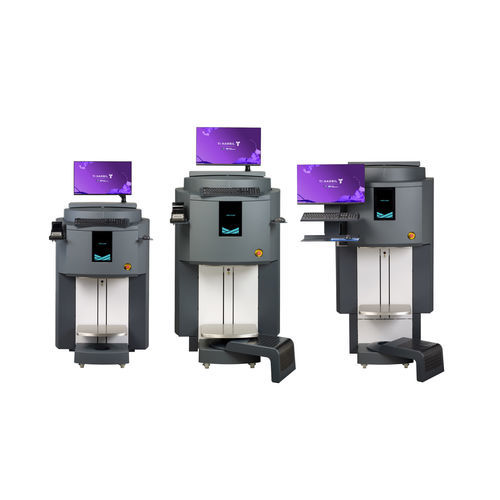

Paint dosing dispenser TI HARBIL 6 PRO

for coatingsliquidswith piston pump

Product overview
The TI HARBIL platform combines versatility, precision and modularity for professional tinting workflows. The TI HARBIL 6 PRO integrates the FastPrecision System (including PumpInPump technology) and the EcoClean Brush to reduce maintenance and improve dispensing accuracy, throughput and sustainability.

Selling points

• Improved design and ergonomics for easier refill and operation
• Intuitive 10-inch touchscreen operator display for fast training and operation
• Fully automatic smart can lift to streamline handling and increase productivity

Key features

• Rotating top lid for easier refill access and improved ergonomics
• 10-inch touchscreen operator display designed for intuitive use by non-trained staff
• Fully automatic smart can lift to reduce manual handling and speed up cycles
• Optimized placement for monitor, keyboard and peripherals to form an efficient workstation
• FastPrecision System delivering high accuracy and reliable sample dispensing
• EcoClean Brush for cleaner operation, reduced waste and lower operator effort

Options & modular elements

• EcoClean Brush (programmable dry/wet cleaning, re-circulated cleaning liquid to extend intervals)
• PumpInPump (high-precision pump option for micro-dispenses down to 0.01 ml)
• UVC lids for canister conditioning (mold and bacteria protection)
• Punch (automated lid punch for dispensing)
• Can positioning light (CPL) for precise can alignment
• Harbil Automation integration for high-output automated lines
• Different colours (RAL) available as an option

Technical specifications

• General: Automatic sequential; Bi-directional; Compatible colorants: Universal, Water based, Solvent based
• Pump (standard): Harbil® ZeroPurge™ piston pump; Pump size 87 ml; Flow rate 1.0 l/min; Minimum dispense 0.05 ml; Nozzle diameters 2 / 4 / 6 mm; Stainless steel ball valve; Seals: Teflon / Viton extreme / Viton; ZeroPurge™; Copied calibration – no recalibration required
• Pump (optional PumpInPump): PumpInPump option; Pump size 88 ml; Flow rate 0.9–1.0 L/min; Minimum dispense 0.01 ml; Nozzle diameters 0.6 / 1.4 / 6 mm; Stainless steel ball valve; Seals: Teflon / Viton extreme / Viton; Copied calibration – no recalibration required
• Dimensions & Weight: Net HxWxD: 150 x 87 x 96 cm (Low Model Configuration); Net HxWxD: 174 x 87 x 96 cm (High Model Configuration); Net weight: 230 kg; Packaging HxWxD: 173 x 95 x 114 cm (Low) / 188 x 95 x 114 cm (High); Packaging weight: 250 kg
• Brush: Sliding brush tray (standard); Sliding brush tray with bottle (EcoClean option); Brush container material: POM
• Canisters: Up to 32 canisters; Material: Polymeric (POM); Sizes supported: 2 L / 3 L / 6 L / 10 L
• Can table: Smart automatic can table; Maximum can height: 46 cm; Optical can sensor: standard
• Power supply & Safety: 110V +/- 10%, 50Hz/60Hz and 230V +/- 10%, 50Hz/60Hz; CE certified
• Options (examples): EcoClean Brush, PumpInPump, UVC lids, Punch (lid punching 46 or 48 mm), Can positioning light (CPL), Harbil Automation, monitor/keyboard mounting accessories, printer plate, keyboard & mouse plate
