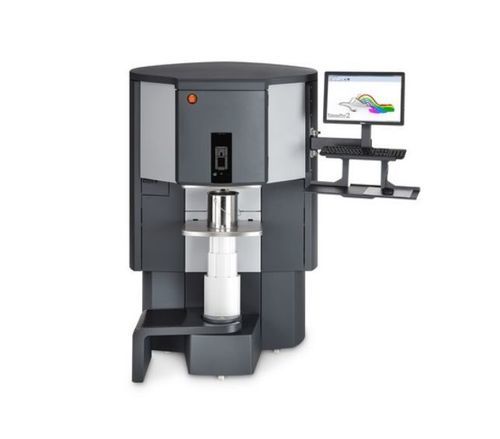

Paint dosing dispenser HA680

for coatingswith volumetric pumpwith piston pump

Heavy-duty design - Harbil® ZeroPurge™ piston pump - High capacity Designed for high-turnover locations, the HA680 delivers optimal workflow with its large capacity and enhanced dispense speed. Equipped with ZeroPurge™ piston pump and AutoDrive™ technology, it ensures efficient, reliable, and future-ready performance for demanding operations. - Sequential dispensing - ZeroPurge Piston pump technology - 16-36 POM/SST canisters in 3/6/10/20 l size - Universal, solvent and water based colorants - Pump sizes: 100 ml / 300 ml - Operator display - Electric can table - Brush monitor - Electric punch (optional) - Heating set (optional) - Low/high model - Optional: Gravimetric dispensing with scale Technical Specifications - General: Automatic sequential dispensing. Supports solvent based, water based, universal and biocide-free colorants. - Pump: Harbil® ZeroPurge™ Piston pump. Pump sizes: 100 ml/300 ml. Flow rates: 0.8 – 1.0 l/min (100 ml), 1.5 – 2.0 l/min (300 ml). Minimum dispense: 0.05 ml (100 ml), 0.10 ml (300 ml). Nozzle diameter: 2/4/6 mm. Stainless steel ball valve. - Canisters: 16-36 POM/SST canisters. Sizes: 3/6/10/20 liters. - Colorants: Universal, solvent and water based, biocide-free. - Operator Interface: Operator display for easy control. - Table: Electric can table for automated can positioning. - Brush Monitor: Integrated brush monitor for maintenance. - Optional Features: Electric punch, heating set, gravimetric dispensing with scale, low/high model variants.
