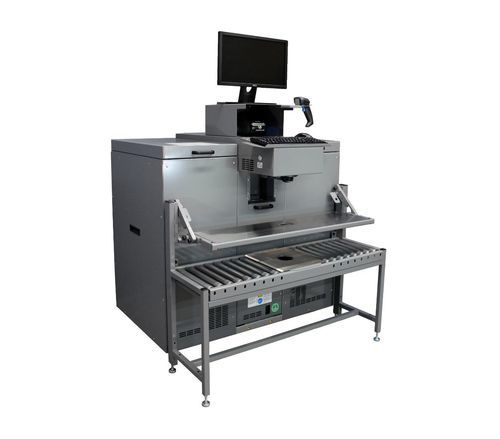

Paint dosing dispenser AccuSmart 9500

with volumetric pumpwith piston pumppiston

Product overview
The AS9500 is built for high-volume tinting workflows and large multi-can orders. Based on DVX® piston pump technology, the machine is configured for accurate, repeatable dispensing of water‑based colorants while providing operator-focused ergonomics and service features.

Selling points

• Instant-On 5-channel simultaneous dispensing
• Combined flow rate up to 4.5 L/min for high throughput
• Configured for large-scale tinting operations and multi-can handling

Description
The AS9500 integrates DVX® piston pump technology to deliver stable calibration and precise micro‑dispensing down to 0.04 ml (colorant dependent). It supports simultaneous dispensing of up to five colorants to accelerate throughput and reduce cycle time. Ergonomic elements include a bright LED alignment array and removable conveyor shelf options. Built-in diagnostics and remote connectivity improve maintainability and on-site support.

Features

• Instant-On 5-channel simultaneous operation
• Bright LED array for quick alignment
• Removable 19 L conveyor shelf and 3.8 L slide shelf
• Reduced power consumption compared with previous generation (approx. 50%)
• Enhanced remote support and diagnostics; IoT ready
• Optimised canister layout and individually programmable agitation frequency

Technical Data — Key Areas
General

• Automatic simultaneous dispensing
• Model name indicated as AccuSmart 9500
• Dispensing mode: simultaneous — 5 colourants at a time
• Colorants supported: water based

Pump

• Pumping system: DVX® Technology — piston pump platform (no valves)
• Maximum combined flow rate: 4.5 L/min
• Circuit flow rate: 0.9 L/min
• Minimum dispense quantity: 0.04 ml (dependent on colorant)

Dimensions & Weight

• Dimensions — no accessories: 112 cm H x 115 cm W x 110 cm D
• Dimensions — with accessories: 132 cm H x 115 cm W x 110 cm D
• Machine weight (empty): 200 kg (+40 kg with conveyor)

Canisters

• Supports up to 16 canisters

Can table

• Removable conveyor with folding can shelf; slide shelf for small containers

Power supply & Safety

• Power: 120–220 V ±10%
• Certifications: CE, UL

Options & Accessories (selection)

• Computer and monitor
• Label printer
• Can/lid sealer
• Surge protector
• Slide conveyor shelf for 5-gallon containers
• Barcode scanner (option)

Notes
DVX® pump technology draws on precision piston pump design to support accurate dispensing in high‑throughput tinting contexts. System specification is for water‑based colorants and workflows requiring simultaneous multi-color dispensing.

Technical specifications

• Model: AccuSmart 9500
• Dispensing: Simultaneous dispense of 5 colourants
• Pump tech: DVX® piston pump technology (no valves)
• Max combined flow rate: 4.5 L/min
• Circuit flow rate: 0.9 L/min
• Min dispense increment: 0.04 ml (dependent on colourant)
• Canisters: up to 16
• Conveyor shelf: removable 19 L; slide shelf 3.8 L
• Dimensions (no accessories): 112 x 115 x 110 cm (H x W x D)
• Dimensions (with accessories): 132 x 115 x 110 cm (H x W x D)
• Weight (empty): 200 kg (+40 kg with conveyor)
• Power: 120–220 V ±10%
• Certifications: CE and UL
