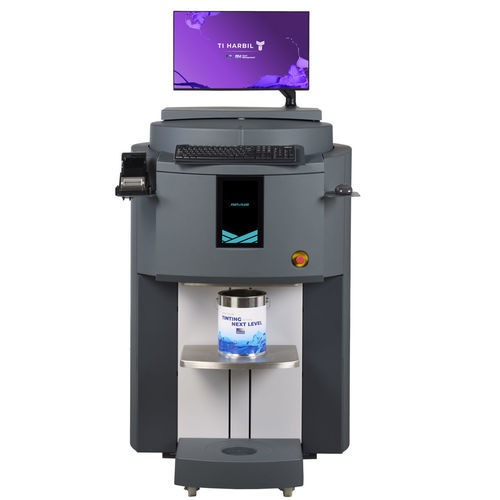

Paint dosing dispenser TI HARBIL 6

for coatingswith piston pumppiston

Overview
Versatility, precision, and configurability define the TI HARBIL platform. For decades, HARBIL has set the standard for reliable tinting solutions trusted worldwide. Building on this proven foundation, the TI HARBIL platform introduces a new generation of smart, flexible technologies supporting growth with the FastPrecision System (including PumpInPump technology) and reducing maintenance with the EcoClean Brush for smoother, more efficient operations. The platform balances precision engineering and flexible configuration to help businesses achieve higher accuracy, efficiency and sustainability in tinting workflows.

Selling points

• Improved design & ergonomics
• Intuitive operator display
• Fully automatic smart can lift

Key Features

• Improved ergonomics with a rotating top lid for easier refill access
• 10" touchscreen operator display designed for intuitive use by non‑trained staff
• Fully automatic smart can table to streamline workflow and reduce handling
• Optimized placement of monitor, keyboard and peripherals for an efficient workstation
• FastPrecision System delivers high accuracy including reliable sample dispensing
• EcoClean Brush supports cleaner operation, reduced waste and lower operator effort

Technical Data
General

• Automatic sequential operation
• Bi-directional dispensing
• Supports Universal, Water based and Solvent based colorants

Pump

• Harbil® ZeroPurge™ piston pump (standard)
• Pump size (standard): 46 ml
• Flow rate: 0.65 L/min
• Minimum dispense (standard): 0.05 ml
• Nozzle diameters (standard): 2 / 4 / 6 mm
• Stainless steel ball valve
• Seals material: Teflon / Viton extreme / Viton
• ZeroPurge™ technology
• Copied calibration – no recalibration required

Pump (Optional PumpInPump)

• PumpInPump option for higher accuracy
• Pump size (optional): 47 ml
• Flow rate: 0.65 L/min
• Minimum dispense (PumpInPump): 0.01 ml
• Nozzle diameters (PumpInPump): 0.6 / 1.4 / 6 mm
• Stainless steel ball valve, Teflon / Viton seals
• Copied calibration – no recalibration required

Brush

• Sliding brush tray (standard)
• Sliding brush tray with bottle (EcoClean optional)
• Brush container material: POM

Canisters

• Up to 32 canisters
• Material: Polymeric (POM)
• Canister sizes supported: 2.3 L and 4.6 L

Can Table

• Smart automatic can table
• Maximum can height: 46 cm
• Optical can sensor: standard

Dimension & Weight
Net H x W x D: 142 x 87 x 96 cm
Net weight: 230 kg
Packaging H x W x D: 173 x 95 x 114 cm
Packaging weight: 241 kg

Power Supply & Safety

• 110 V ±10%, 50/60 Hz
• 230 V ±10%, 50/60 Hz
• CE certified

Options & Accessories (examples)

• EcoClean Brush (automated nozzle/brush cleaning, re-circulated cleaning liquid, dry/wet cleaning)
• PumpInPump (ultra-precision dispensing to 0.010 ml)
• UVC lids for canister conditioning
• Integrated punching system (punch hole in lid for dispense)
• Can positioning light (CPL) for precise alignment
• Harbil Automation integration for automatic tinting lines
• Monitor/keyboard arm, printer plate, keyboard & mouse plate accessories

Caractéristiques / Spécifications techniques

• Model: TI HARBIL 6
• Brand: TI HARBIL
• Operation: Automatic sequential, bi-directional
• Standard pump: Harbil ZeroPurge™ piston pump, 46 ml, min dispense 0.05 ml, flow 0.65 L/min
• Optional pump: PumpInPump, 47 ml, min dispense 0.01 ml, flow 0.65 L/min
• Nozzle diameters: standard 2/4/6 mm; optional 0.6/1.4/6 mm
• Canister capacity: up to 32 canisters (2.3 L & 4.6 L)
• Maximum can height on table: 46 cm
• Brush: Sliding brush tray standard; EcoClean Brush optional (re-circulated cleaning, dry/wet system)
• Display: 10" touchscreen operator display
• Dimensions (Net H x W x D): 142 x 87 x 96 cm
• Net weight: 230 kg
• Packaging dimensions: 173 x 95 x 114 cm; packaging weight: 241 kg
• Power supply options: 110 V ±10% or 230 V ±10%, 50/60 Hz
• Certification: CE
