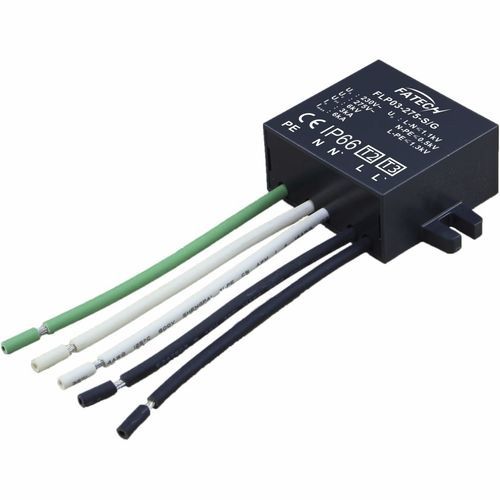

Type 3 surge arrester FLP03-275-S/G
for power suppliesoutdoorfor LED lighting

type 3 surge arrester
type 3 surge arrester
Add to favorites
Compare this product


Characteristics

Type
type 3
Applications
for power supplies, outdoor, for LED lighting
Other characteristics
MOV, low-voltage, AC, with housing
Voltage

Min.: 0 V

Max.: 275 V

220 V

Primary current

Min.: 0 A

Max.: 6,000 A

3,000 A

Description

1.Description Fatech self-designed LED street light surge protection module, awarded Patent in China, with thermal cut-off member inside, including FLP03(Imax 6kA), FLP05(Imax 10kA), FLP10 (Imax 20kA) series, and parallel type available for customer's different application. 2.Characteristics 1) New designed LED lighting surge protection module. 2) Specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting. 3) Imax 6kA lightning surge protection. 4) Metal oxide varistor (MOV) thermal protection. 5) Series connected SPD. 6) Waterproof IP66. 3. Electrical Parameters 1) Test class IEC/EN/VDE: Class II+III/C+D/T2 T3 2) Type of Network: LED street light 3) Protection mode: L-N, L-PE, N-PE 4) Nominal voltage 50(60)Hz Un: 230V~ 5)Rated Voltage (Max.Cont. Operating Voltage) Uc: 275V~ 6) Max. discharge current (8/20μs) Imax: 6kA 7) Nominal discharge current (8/20μs) In: 3kA 8) Open circuit voltage Uoc: 6kV 9) Response time tA: L-N: ≤25ns; N-PE: ≤100ns 10) Recommended back-up fuse: 16A 11) Thermal Cut-off temperature: 150℃ 12) Operation temperature range / altitude: -40℃~+80℃/2000m 13) Degree of protection: IP66 14) Housing material: UL94V0
