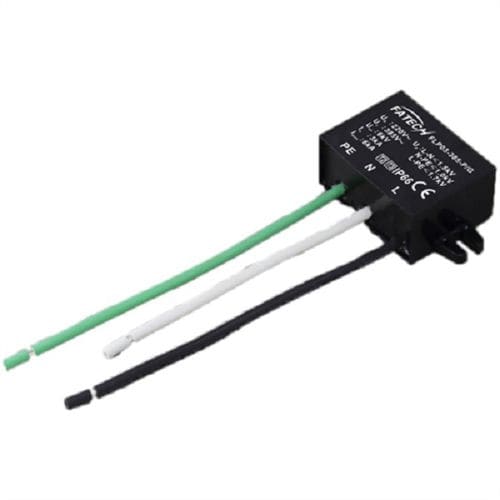

Type 3 surge arrester FLP03-xxx-xxx/G

for power suppliesfor LED lightingoutdoor

1.Description Fatech self-designed LED street light surge protection module, awarded Patent in China, with thermal cut-off member inside, including FLP05(Imax 10kA), FLP10 (Imax 20kA) series, and parallel type available for customer's different application. 2.Characteristics 1) New designed surge LED series connected surge protection module for lighting, without LED failure indicator. 2) Specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting. 3) Imax 6kA lightning surge protection. 4) Metal oxide varistor (MOV) thermal protection. 5) Parallel connected and series connected SPD options. 6) Waterproof IP64. 3. Electrical Parameters 1) Test class IEC/EN/VDE: Class II+III/C+D/T2 T3 2) Type of Network: LED street light 3) Protection mode: L-N, L-PE, N-PE 4) Nominal voltage 50(60)Hz Un: 120V/230V~, 230/380v~ 5）Rated Voltage (Max.Cont. Operating Voltage) Uc:150V~, 275V~, 320V~, 385V~ 6) Max. discharge current (8/20μs) Imax: 6kA 7) Nominal discharge current (8/20μs) In: 3kA 8) Open circuit voltage Uoc: 6kV 9) Response time tA: L-N: ≤25ns; N-PE: ≤100ns 10) Recommended back-up fuse: 16A 11) Thermal Cut-off Member: No 12) Operation temperature range / altitude: -40℃~+80℃/3000m 13) Degree of protection: IP64 14) Housing material: UL94V0
