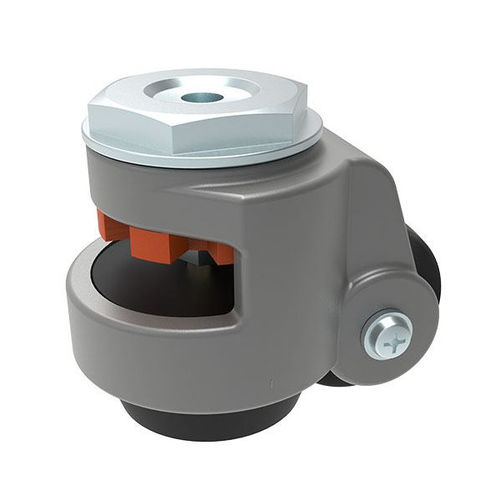

Leveling caster 098LF series

swivelbase platePA

leveling castor Reliable leveling castor with integrated mounting plate for fixation to aluminum profiles with modular dimension 40 and 45 mm For positioning and transporting machines Wear-resistant castors ensure a long service life with minimal abrasion. They have a dynamic load capacity of up to 340 kg. This means that racks weighing a maximum of 340 kg per castor can also be moved safely. Castor diameters of 50 or 62 mm also allow uneven surfaces to be driven over up to 10 mm. Roller movement locking by temporary positioning on stamp actuation of the height adjustment of the stamp via adjustement wheel in the castor housing with wrench No additional transport and base plate needed Material & surface: Bolt hole plate: steel, zinc plated Housing: die-cast aluminium, powder-coated Adjustment wheel: Plastic PA Stamp: rubber NBR Roller: Plastic PA Incl. open-end spanner for assembly
