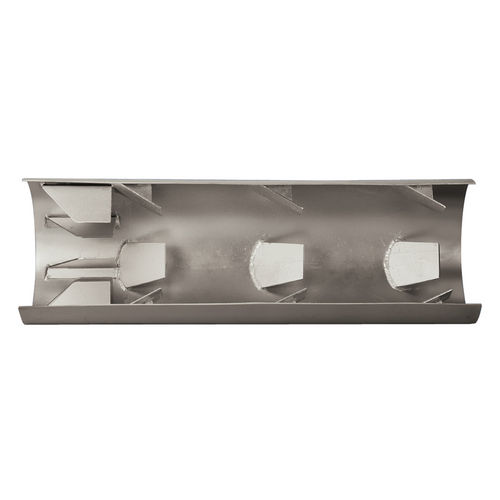

The VORTAB® VIS Insertion Sleeve flow conditioner provides a low pressure loss solution to flow profile irregularities caused by elbows, valves, blowers, compressors and other disruptions that commonly occur in piping and duct runs.
Applications
Piping with inadequate straight-runs
Temperature and pressure stratification
Process conditioning for control valves, blowers, compressors, burners and other critical process equipment
Flow conditioning for calibration and test benches
Processes that require repeatable, symmetric and swirl-free velocity flow profiles
Specifications
Process Media:
Gases, liquids and slurries
Materials of Construction:
316L stainless steel
Carbon steel
Hastelloy C
Other materials of construction available
Inside Diameter of Pipe or Duct:
Customer specified from 0.87 to 48 inches [22 to 1220 mm]
Pipe or Duct Process Connection:
Field welded in place
Captured flange
Flow Conditioner Length:
3 pipe diameters
Custom Configurations:
Contact FCI
