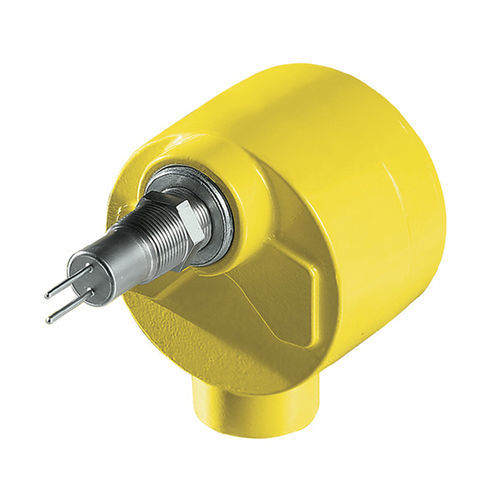

Thermal level switch FLT93F

for liquidsIEC-ExATEX

The FLT93F insertion type FlexSwitch for liquid point level or interface detection and temperature monitoring. It represents the first true technological breakthrough in thermal technology in over a decade. This product was designed for heavy industrial environments including high temperature and high pressure. FCI is the only thermal manufacturer providing temperature compensation to ensure set point accuracy for process temperatures that vary up to ± 100° F. The FLT93F offers very fast response time to level trip points and is suitable for small process connections. This product is easily field-configured or factory preset, providing unparalleled flexibility, accuracy and stability for all multiple process sensing and switching requirements. Liquid Point Level Detection/Alarm Interface and sump level detection Interface/sump level detection in separation vessels Agitation detection Interface/level detection in settling vessels Foam or sediment level control Liquid/resin interface detection Specifications Optional N.I.S.T. Flow Calibration Services Factory N.I.S.T. calibration in air or water is available as an option for customer specified setpoint(s) or a flow curve based on the media ranges specified above. Flow Element Materials of Construction: All-welded 316L stainless steel for all wetted surfaces. Hastelloy C, Monel 400 and Titanium are available as an option. Process Connection: Standard: 0.75 inch male NPT. Optional: 1 inch male NPT, flanges or retractable sensing element. Insertion Length: 1.2 inch [30 mm] 2 inches [51 mm] 4 inches [102 mm] 6 inches [152 mm] 9 inches [229 mm] 12 inches [305 mm] 18 inches [457 mm]
