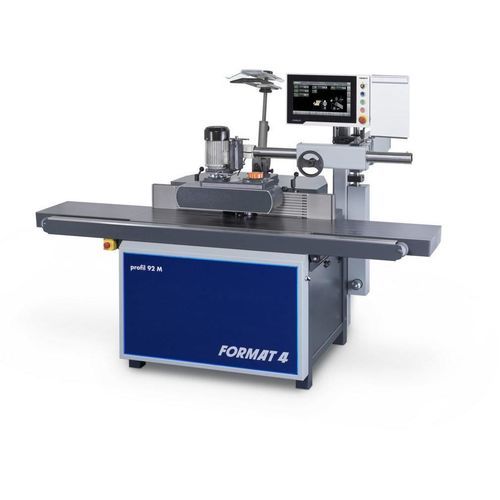

Wood shaper machine 92 M e-motion

high-precision

Overview
Setup times are a thing of the past: Format4 profil 92 M e-motion - the spindle shaper with double swivel and HSK 63F tool quick-change system
The profil 92 M table spindle shaper is a premium machine designed for high productivity and minimal set-up times. The electro-spindle features an HSK 63F interface for automatic tool quick-change with pneumatic clamping. The double-tilt spindle provides a wide tilting range of ±46° for versatile machining. Rotation speed, spindle height and angle, spindle fence and table opening are adjusted via the intuitive e-motion control on a 15-inch touchscreen, with memory for tools, spindles and moulding/mortising programs to ensure repeatability.

Design & key functional features

• Electro-spindle with HSK 63F interface for automatic quick-change with pneumatic clamping
• Double swivel/tilting spindle unit with large tilting range ±46° and forced-guided double suspension for backlash-free tilting
• Intuitive e-motion control on 15-inch touchscreen: control of rotation speed, spindle height and angle, spindle fence and table opening; memory for tools and programs
• Controlled eccentric insert rings for maximum table support surface and reduced setting effort when tilting the spindle
• Heavy-duty precision spindle moulder fence with two controlled axes for precise depth adjustment and independent positioning of the right-hand feeding jaw; fence can be swivelled away for curved shaping
• Optionally available electrically height-adjustable power feeder; optional tilt-away device for feeder

Highlights

• Consistent high performance for industrial continuous operation
• Customer-specific optimised production solutions
• Solid design with premium components
• Multiple specification packages with high-tech options
• Complete engineering precision
• Premium user comfort and award-winning design
• Quality and precision from Austria; uncompromised productivity

Details / Accessories (selected)

• Parts list holder with A4 clipboard mounted on the overhead control panel
• New swing-away fence stop with two controlled axes for precise depth adjustment and swivel-away capability for curved moulding
• Dual dust extraction via shaper fence and chip collection bin under cutterhead
• Integral fence with continuously and quickly positionable fence plates (optional)
• Easy-Glide patented tilting segment: maintenance-free, no lubrication required; durable synthetic material; 6 year guarantee
• Various HSK 63F spindle variants and collet chuck options available as accessories (multiple usable heights and diameters)

Notes on controls & safety
The e-motion control includes a USB interface and network preparation; the control panel is height- and position-adjustable and can be swung away from the working area. Centrex moulder guard and various safety bar guides and fence plate options are available; dual extraction and extractor connection ports ensure clean operation.

Technical specifications

• Model: profil 92 M e-motion
• HSK 63F spindle interface; spindle bore Ø 30 mm (example), usable spindle height up to 140 mm (depending on spindle variant)
• Variable spindle speed: 1,000 – 18,000 rpm
• Motor options: 7.5 kW with variable speed (standard); 10 kW with variable speed (option)
• Table opening: 320 mm (standard) / 255 mm option with controlled eccentric insert rings
• Moulder fence for max. tool diameter 250 mm
• Anodised aluminium spindle fence plates 550 mm (standard); safety bar guides / integral safety bar guides available as options
• Tilting range: ±46° with position-controlled angle adjustment
• Position-controlled spindle height adjustment
• Control: e-motion touchscreen control at eye level; USB interface; network preparation
• Extractor connection diameters (spindle fence / below table): 140 / 80 mm
• Working height: 35 inch
• Minimum transport width: 51⅜" (35⅜" indicated in parentheses)
• Weight (with average equipment): approx. 1606 lbs
• Packaging options: IPPC packaging (standard), container packaging (standard)
• Feeder options: electrically height-adjustable power feeder (option); tilt-away device for power feeder (option)
• Legend: S = Standard equipment; O = Option
