CNC shaper machine 45 M

for wood

Overview

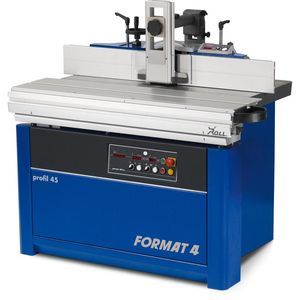

The new table spindle moulder with tilting spindle from Format4 integrates advanced control options and precision engineering for professional machining tasks. With a long, solid cast-iron spindle table and refined detail solutions, the profil 45 M performs across demanding production and special machining applications. The machine is configured for industrial milling of wood and offers options for plastics and composite processing (c-tech line).

Package and control
The "x-motion" package provides enhanced operator ergonomics: it includes TFT monitors (x-motion: TFT 5.7"; Premium versions: TFT 15"; depending on configuration, fence control may be shown on a 7" TFT). The touch control allows spindle adjustment, fence control, selection of preconfigured programs and, optionally, use of a tool database.

Advantages and highlights

• High and consistent performance for industrial use
• Production-optimised and customisable solutions
• Solid construction with premium components
• Varied equipment packages with advanced technology options
• Refined precision engineering
• Improved operator ergonomics
• Awarded industrial design
• Austrian build quality and precision
• Productivity-oriented configuration options
• Comprehensive technical support and tailored financing solutions available

Main functions and equipment (summary)

• Quick-change spindle system: allows replacement in seconds of premounted tool spindles and spindles of different diameters; a high-speed spindle for router bits (15,000 rpm) is available.
• Electric fence control with real-time value display; quick-clamping fence options on request.
• Double milling extraction: suction ports below and above the table for optimal chip and dust removal.
• Quick-Lock system: secure, fast clamping for cutter changes on the table (suitable for Ø 30 mm spindle).
• Easy-Glide guides with dual forced suspension for maximum load capacity and smooth travel.
• Heavy, precise spindle unit: dual suspension for angle adjustment, dovetail guide for linear height adjustment and maximum repeatability.
• Solid cast-iron spindle table with front support (support length 1270 mm) and optional solid table extensions for increased work surface.

Applications
Suitable for professional milling of solid wood, panels, plastics and composite materials (c-tech line). Appropriate for single high-precision tasks as well as series production with fast, repeatable setups.

Features / technical specifications

• Model designation: profil 45 M (variants: profil 45 M x-motion)
• Table opening for tools: 320 mm
• Fence: accepts maximum tool diameter up to 250 mm (value indicated in data sheet)
• Quick-change spindle system: standard (enables fast exchange of spindles and premounted tools)
• Spindle control (depending on variant/package): x-motion (touch screen); other variants: "Power-Drive" or touch controls of various sizes (7", 5.7", 15" mentioned depending on package/version)
• High-speed spindle (optional): accepts router shank diameters Ø 6–16 mm; speed: 15,000 rpm; maximum motor power mentioned: 10.0 CV (as specified for the high-speed spindle)
• Extraction system: double extraction (upper and lower ports)
• Quick-clamping fence system: available as an option (quick-release clamping lever)
• Quick-Lock: fast and secure cutter change system on table; suitable for Ø 30 mm spindle
• Spindle table: solid cast construction, robust front support; optional lateral table extensions, front support 2200 mm (mentioned as included in optional extensions)
• Guides: Easy-Glide system (dual forced suspension)
• Bearings on spindles: spindles equipped with three precision bearings for heavy-duty use and long service life
