High-precision shaper machine 45 M x-motion

for wood

Overview

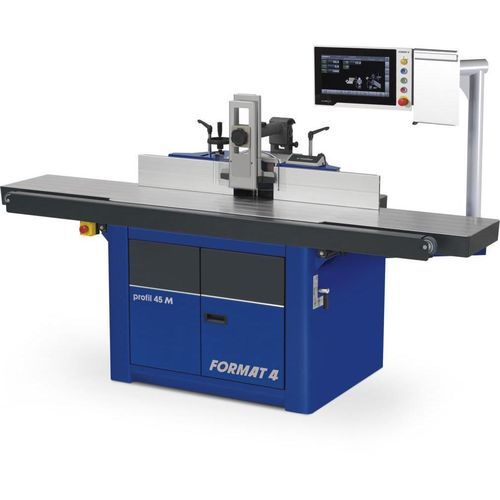

The tilting shaper profil 45 M x-motion is a professional woodworking machine combining a rigid cast-iron table, large working opening and advanced control for industrial shaping operations. Designed for precise profile machining, it supports both wood and technical plastics/composites with configuration options for high productivity.

Key product statement
The profil 45 M is engineered as an industrial machine for special shaping tasks and high-efficiency production. The c-tech equipment line provides dedicated options for processing plastics and composite materials.

Premium "x-motion" features (profil 45 M x-motion)
The profil 45 M x-motion includes a 7" TFT touch monitor with the x-motion control package for operator convenience: the screen is positioned at eye level and displays key data. Spindle and fence settings can be adjusted from the touch interface. The premium package adds program recall, configurable shaping programs and an optional tooling database.

Highlights and benefits

• Stable performance for continuous industrial operation
• Customer-specific production solutions and configurations
• Rugged design with precision engineering and premium components
• Multiple specification packages with advanced technical solutions
• Enhanced user ergonomics and intuitive control layout
• Austrian manufacturing precision for consistent productivity

Variants

• profil 45 M x-motion — includes x-motion touchscreen control and premium features (7" TFT display, tooling database, program recall)
• profil 45 M — standard configuration with Power-Drive spindle control (manual/electronic fine and coarse adjustment)

Main features / details (selected)

• Shaper table opening: 12⅝" (320 mm) — large opening for safe operation and easy positioning of tenoning and panel-raising tooling
• Spindle fence for max. tooling diameter: 9⅞" (250 mm)
• Quick change system for shaper spindle — rapid spindle and tooling changes; supports high-speed router spindles up to 15,000 rpm; Format-4 spindle with three high-quality metal bearings
• Shaper fence with tilt-away bracket as standard — enables quick tooling/spindle changes and curved work
• Spindle fence control — precise motorised adjustment with real-time display
• Dual dust extraction — extraction via fence and chip collection bin under cutterhead for clean operation
• Optional quick clamping system for moulding fence — attach/release with a single hand movement
• Easy-Glide tilting segment guide — guided double-sided support for load-bearing and tolerance-free tilting
• Industrial-grade spindle assembly — heavy-duty motor unit, precision dual guidance for exact angle adjustment and dovetail guidance for linear height change
• FORMAT4 shaper spindle tilts rearwards — safer operation, no pinch point, full workpiece height range and optimal chip removal
• Quick-Lock cutter clamping system — fast, secure change of routing tools, suitable for Ø 30 mm spindles
• Optional solid table extensions — increase working surface by 670 mm per side; extended front pull-out support up to 2200 mm with extensions

Technical data / specifications

• Electrics: 3x 230 V motor voltage
• Motor frequency: 60 Hz
• Spindle motor power options: 7.5 HP (5.5 kW) S6/40% (standard); 10 HP (7.30 kW) optional; 13.5 HP (10 kW) optional
• Spindle speed positions: 5 positions at 3500 / 4500 / 6000 / 8000 / 10,000 rpm
• Shaper table opening: 12⅝" (320 mm)
• Maximum tooling diameter at spindle fence: 9⅞" (250 mm)
• High-speed router spindle: supports router shaft diameters Ø 6–16 mm and speeds up to 15,000 rpm; available with up to 10 HP depending on configuration
• Control (profil 45 M x-motion): 7" TFT colour monitor with touch screen (x-motion)
• Control (profil 45 M): Power-Drive control (manual/electronic fine and coarse adjustments, LED actual value display)
• Table and support: solid cast-iron machine table, 1270 mm front pull-out support (increases support surface by up to 400 mm), optional extended front pull-out support with table extensions
• Dust extraction: dual extraction via fence and chip collection bin
