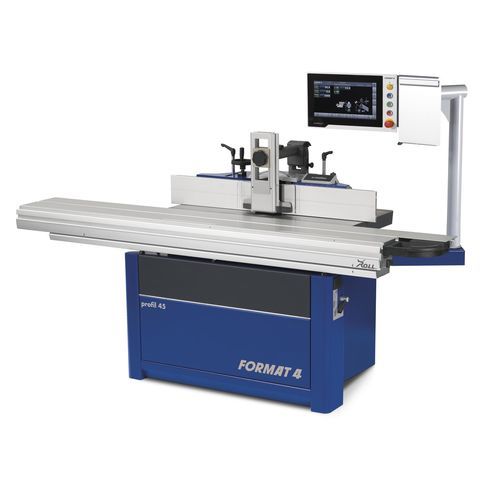

CNC shaper machine 45 Z x-motion

high-precisionfor wood

Overview
profil 45 Z Tilting Shaper x-motion. Elegant, perfectly engineered and intelligent: the profil 45 Z x-motion enables fast, precise moulding and tenoning operations with programmable control. Height and tilt adjustment of the spindle and positioning of the spindle fence are performed conveniently from the control panel. The spindle quick-change system reduces setup time and increases production efficiency. Quality engineering from Austria.

Control / User comfort
The 7" TFT monitor included in the x-motion control package provides clear, ergonomic operation. The eye-level touchscreen shows all relevant parameters at a glance. Spindle settings and spindle fence positioning can be controlled directly from the screen. The premium package offers program recall, configurable moulding programs and an integrated tooling database.

Highlights

• Spindle quick-change system – extremely fast spindle/tool exchange; supports high-speed router spindles up to 15,000 rpm and spindles of various diameters; format 4 spindle with 3 high-quality metal bearings for stability.
• "x-motion" control – 7" TFT colour touchscreen for positioning and program recall; fence positioning via touch interface.
• Easy-Glide tilting segment guide – precise, double-sided guided tilting with high load capacity and freedom from play.
• Quick-Lock clamping system – safe, fast cutter changes on the table router (suitable for Ø 30 mm spindles).
• Dual dust extraction – extraction at the shaper fence plus chip collection under the cutterhead for clean operation.
• Rearward tilting spindle – safer operation without pinch points, no limitation on workpiece height, supports power feeders and efficient chip removal.

Variants / Typical equipment items

• profil 45 Z x-motion (x-motion touchscreen package)
• profil 45 Z (standard package; Power-Drive spindle control optional)
• Sliding table lengths: 51⅛" (1,300 mm) standard; optional 81" (2,050 mm) or 98⅜" (2,500 mm).
• Spindle fence for max. tooling diameter: 9⅞" (250 mm).
• Shaper table opening: 12⅝" (320 mm) for large tenoning and panel-raising tooling.

Product details – selected features

• Spindle quick-change: allows use of spindles with pre-mounted moulding tools or different-diameter spindles; changes in seconds; supports high-speed router spindles up to 15,000 rpm.
• Shaper assembly: heavy-duty construction with precision dual guidance for exact angle adjustments and dovetail guidance for linear height adjustment; industrial-grade spindle motor unit.
• Tenoning / slot table: X-Roll guiding with evenly distributed roller pressure and hardened polished guiding surfaces for long-term precision and smooth operation.
• Outrigger tables (optional): 43¼" (1100 mm) and 51" (1295 mm) with telescopic arm to support large/heavy workpieces; end roller for loading large panels without damage.
• Power-Drive: coarse adjustment via control switch and fine adjustment via push button with LED display for set value.

Technical data / specifications

• Model family: profil 45 Z
• Control (x-motion variant): 7" TFT colour monitor, eye-level touchscreen, program recall and tooling database
• Spindle quick change: standard on x-motion variant; supports high-speed router spindle up to 15,000 rpm; 3 metal precision bearings
• Spindle speeds (typical): 3500, 4500, 6000, 8000, 10000 rpm (option: continuously adjustable 1,500–10,000 rpm)
• Spindle fence: supports max. tooling diameter 9⅞" (250 mm)
• Shaper table opening: 12⅝" (320 mm)
• Sliding table lengths: 51⅛" (1,300 mm) standard; optional 81" (2,050 mm) / 98⅜" (2,500 mm)
• Dust extraction: dual extraction via shaper fence and chip collection under cutterhead
• Tilting guide: Easy-Glide tilting segment guide (double-sided guided)
• Quick-Lock: table router cutter change system suitable for Ø 30 mm spindles
• Construction: heavy-duty profil 45 assembly, dovetail linear height guidance, precision dual guidance for angle adjustments
• Design / Origin: engineered components and precision manufacturing; quality from Austria
