CNC shaper machine 45 Z

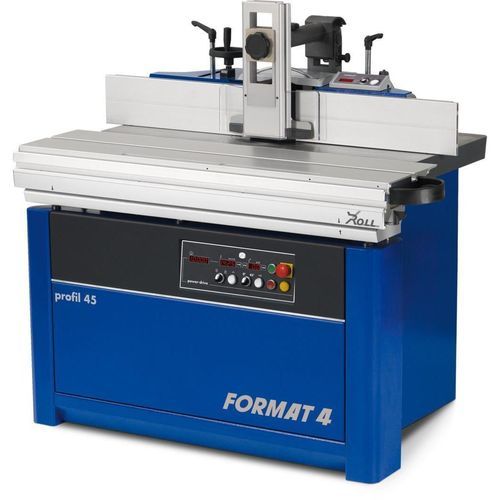

Product overview Elegant, perfectly designed and intelligent – the Format4 profil 45 Z offers perfection at the push of a button regardless of the operation. The highlights for the professional user: height and angle adjustment of the spindle as well as the positioning of the spindle fence can be quickly and easily adjusted from the control panel. The spindle quick change system ensures extremely quick changeover times and maximum production efficiency. Premium woodworking of the highest level with quality from Austria.

Control and user comfort The 7" TFT monitor included in the "x-motion" control package offers unique user comfort that is simply top class. The touch screen control unit is positioned at eye level and provides all of the important information necessary in one overview. With x-motion the spindle settings and the Format4 spindle fence can be positioned directly from the touchscreen and moulding programs can be retrieved at the touch of a button.

Highlights

• Quick change system for shaper spindle (very fast spindle changes, supports spindles with pre-mounted moulding tools and different diameters)
• "x-motion" control: 7" TFT colour monitor with touch screen, program retrieval and tooling database
• Easy-Glide tilting segment guide for precise, guided double-sided support
• Rearward tilting spindle for safe operation and optimal chip removal
• Dual dust extraction via spindle fence and chip collection bin under the cutterhead

Additional features and options

• Safety bar guides (optional) for end-grain work
• Spindle moulder fence quick clamping system (optional) for single-hand attach/release
• Quick-Lock clamping system for fast, safe cutter changes on Ø30 mm spindles
• Large shaper table opening for safe handling and use of large tenoning/panel-raising tooling
• Tenoning table on X-Roll guides for even pressure distribution and smooth operation (long-life design)
• Optional outrigger tables (various sizes) and telescopic arm for large/heavy workpieces

Usage & performance notes

• The spindle quick-change system allows mounting of a high-speed router spindle (up to 15,000 rpm) and is built with three high-quality metal bearings for stability and durability
• The heavy-duty profil 45 shaper assembly is designed for industrial continuous use with precision dual guidance for exact angle adjustment and dovetail guiding for linear height adjustment
• Rearward tilting spindle ensures safety (no pinch point), unlimited workpiece height, effective power feeder operation, superior finish and optimal chip removal

Caractéristiques / spécifications techniques

• Denomination commerciale: profil 45 Z
• Table opening: 12⅝" (320 mm)
• Spindle fence for maximum tooling diameter: 9⅞" (250 mm)
• Quick change system for shaper spindle: standard (very fast changeover; supports spindles with pre-mounted moulding tools and different diameters; supports high-speed router spindle up to 15,000 rpm)
• Sliding table (standard / optional): 51⅛" (1,300 mm) [options: 81" (2,050 mm) / 98⅜" (2,500 mm)]
• Outrigger table options: 43¼" (1,100 mm) and 51" (1,295 mm) with telescopic arm (optional)
• Speeds (profil 45 Z variant): 3,500 / 4,500 / 6,000 / 8,000 / 10,000 rpm (Option: continuously adjustable 1,500–10,000 rpm)
• Shaper spindle control: available as "Power-Drive" or as "x-motion" touch screen control (7" TFT) depending on variant
• Spindle construction: Format-4 spindle with 3 high-quality metal bearings (work standard)
• Quick-Lock clamping: suitable for Ø 30 mm spindles for fast cutter changes
• Dual dust extraction: via shaper fence and chip collection bin under cutterhead
• Tenoning table guidance: X-Roll roller system on hardened polished guiding surfaces (long-life; 10-year factory guarantee for guiding)
• Variants: "profil 45 Z" and "profil 45 Z x-motion" (x-motion includes touchscreen spindle/fence positioning and program tooling database)
