Manual rotary table FP-RM 1600

horizontalmarkingloading

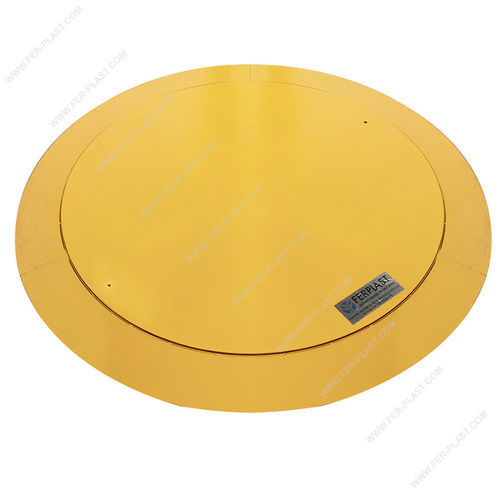

LOW PROFILE MANUAL ROTARY PLATFORM FP-RM 1600 Low profile platform for manual rotation of palletized loads. Special extra-flat version with a height of only 25 mm from the floor and rotation on high capacity and smoothness balls. The central rotary table has a diameter of 1300 mm and is equipped with a fixed external ring with an external diameter of 1600 mm which has the function of a loading ramp for manual pallet trucks. The rotary platform can be used for palletizing and depalletizing loads, marking / labeling on multiple sides, quality or quantity control, etc. It can also be used in the industrial sector for the assembly or repair of equipment. The central ring is raised by about 5 mm compared to the external ring, easily passable by a pallet truck. Structure equipped with mechanical rotation lock and lifting eyebolts. MODEL: FP-RM 1600 Maximum structure load: Kg. 1200 Maximum pallet dimensions: mm. 1200 x 1200 Turning table diameter: mm. 1300 Ring outer diameter: mm. 1600 Turning table height: mm. 25 Overall: Diameter mm. 1600 x mm. 25 h. Weight: Kg. 125 Equipment for loads with a maximum weight of 1200 kg. Since to maintain a low profile it is necessary to use low thickness profiles, the maximum load that can be turned occasionally is 1800 kg but the recommended standard load is 1200 kg. For the same reason the upper plate may not be perfectly level and parallel to the floor but have a 5 mm play on the rotation. Frequency of use: The platform is mainly designed to be used in companies and packaging warehouses with the aim of loading and unloading products and boxes from a pallet. It is also used to perform maintenance on equipment. The usual and maximum recommended use is therefore about 6-10 revolutions/hour over 1 shift. The platform, on order, is also available in the following versions: MODEL: Rotary table diameter: Outer ring diameter: Rotary table height: Weight FP-RM 1400: 1200 mm: 1400 mm: 25 mm: 115 kg FP-RM 1300: 1000 mm: 1300 mm: 25 mm: 105 kg Low profile platform suitable for rotating palletised loads. Maximum structure load capacity: 1200 kg Table diameter: 1300 mm Technical specifications: Model: FP-RM 1600 Maximum structure load: 1200 kg Maximum pallet dimensions: 1200 x 1200 mm Turning table diameter: 1300 mm Ring outer diameter: 1600 mm Turning table height: 25 mm Overall dimensions: Diameter 1600 mm x 25 mm height Weight: 125 kg Occasional maximum load: 1800 kg Recommended revolutions: 6-10 per hour, 1 shift Mechanical rotation lock and lifting eyebolts included Available in other versions: FP-RM 1400 (1200 mm table, 1400 mm ring, 115 kg), FP-RM 1300 (1000 mm table, 1300 mm ring, 105 kg)
