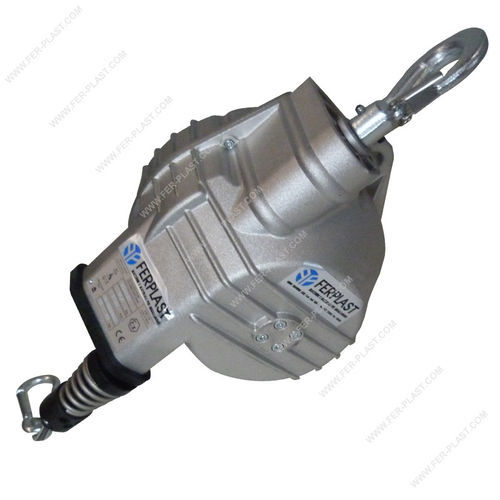

Pneumatic tool balancer AX series

ATEX

ATEX BALANCERS SERIES The Pneumo balancers allow effortless lifting of gluing machines, stapling machines, nailing machines, strapping machines, and other tools in environments with potentially explosive atmospheres consisting of flammable gases or combustible dusts. Features: - Capacity: 2 to 100 kg - Weight: 3.95 to 16.80 kg - Max stroke: 2000, 2100, 2500, 2700 mm - Rope: Stainless steel - Cap: Aluminium - Manufactured according to DIN 15112 Attention: Models from 9346 AX to 9350 AX are only suitable for environments characterized by flammable gases (II 2G c T6). Models from 9354 AX to 9525 AX are suitable for environments with an atmosphere composed of flammable gases and combustible dusts (II 2G c T6, II 2D c T85 °C). - Effortless lifting of tools in explosive atmospheres - Capacity range: 2 to 100 kg - Weight range: 3.95 to 16.80 kg - Maximum stroke: 2000, 2100, 2500, or 2700 mm - Stainless steel rope - Aluminium cap - Manufactured according to DIN 15112 - Models 9346 AX to 9350 AX: for flammable gases only (II 2G c T6) - Models 9354 AX to 9525 AX: for flammable gases and combustible dusts (II 2G c T6, II 2D c T85 °C)
