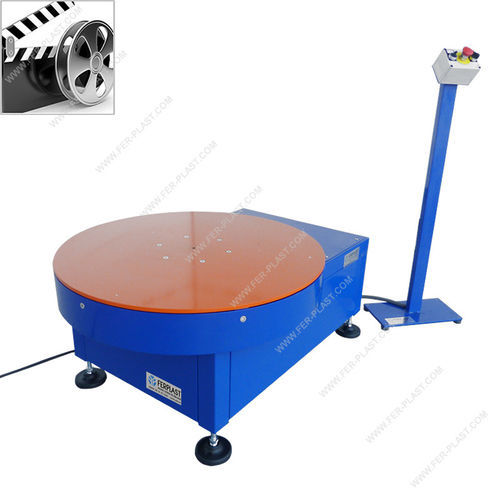

Wrapping table FPR series

ROTATING PLATFORM FOR MANUAL WRAPPING The rotating table platform is an ideal tool for rotating packages or for manually wrapping products with stretch film using a manual dispenser. The slow version (model FPR800L/FPR1500L) is generally used for product inspection and to monitor parameters such as drum leak detection via sensors, and it has a table rotation speed adjustable by inverter from 1 to 2 revolutions per minute. The standard version (model FPR800S) also allows manual wrapping of products with stretch film and has an adjustable speed by inverter from 8 to 12 revolutions per minute. Order form MODEL | FPR800L | FPR800S | FPR1500 Load capacity | 500 Kg – (increased capacity OPTIONAL) | 500 Kg – (increased capacity OPTIONAL) | 2000 Kg Rotating table diameter | mm 800 | mm 800 | mm 1500 Max package diameter | mm 700 | mm 700 | mm 1400 Height from floor | mm 500 | mm 500 | mm 500 Rotation speed | adjustable by inverter from 1 to 2 rpm | adjustable by inverter from 8 to 12 rpm | adjustable by inverter from 1 to 2 rpm Power supply | 220 V, 50 Hz, single phase | 220 V, 50 Hz, single phase | 220 V, 50 Hz, single phase Installed power | Kw 0.37 | Kw 0.37 | Kw 0.4 Machine dimensions | mm 1050x800x500h (including feet) | mm 1050x800x500h (including feet) | mm 2220x1500x500h (including feet) - Rotating platform diameter: 800-1500 mm - With stand for manual winding Technical Specifications / Features: - Model FPR800L: Slow version, diameter 800 mm, load capacity 500 Kg (optional increased), rotation speed 1-2 rpm, power 0.37 kW - Model FPR800S: Standard version, diameter 800 mm, load capacity 500 Kg (optional increased), rotation speed 8-12 rpm, power 0.37 kW - Model FPR1500: Slow version, diameter 1500 mm, load capacity 2000 Kg, rotation speed 1-2 rpm, power 0.4 kW - Max package diameter: 700 mm (FPR800L/S), 1400 mm (FPR1500) - Height from floor: 500 mm - Power supply: 220 V, 50 Hz, single phase - Machine dimensions: 1050x800x500h mm (FPR800L/S), 2220x1500x500h mm (FPR1500)
