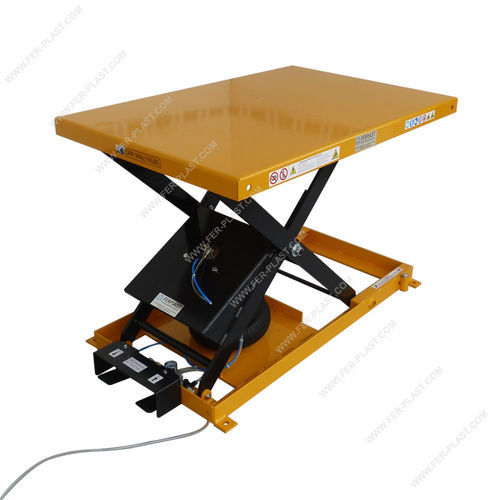

Fixed scissor lift FP PM500Q

pneumaticelectro-hydraulic

Pneumatic Lifting Platform Load 500 KG - With Compressed Air Ideal for lifting packages and pallets up to 500 kg, generally installed in a fixed position inside warehouses. The FP PM500Q model with a single pantograph is operated by two pedals, controlling its movement using compressed air for ascent and descent. It is used for palletizing, packaging, or repair operations. There is a safety lock system for maintenance which prevents the platform from moving. Built according to accident prevention directives. Pneumatic models are recommended for manual/operator uses. Since they work with compressed air, they do not guarantee intermediate positioning precise to the mm as electro-hydraulic platforms can guarantee (hydraulic operation). - Model: FP PM500Q - Load capacity: 500 kg - Minimum height: 230 mm - Maximum height: 840 mm - Loading surface: 1220 x 810 mm - Center of gravity: 610 mm - Lifting time: 10-15 seconds - Air pressure: 6 Bar - Platform weight: 147 kg Models with a capacity of 1000 kg and 2000 kg are available on request.
