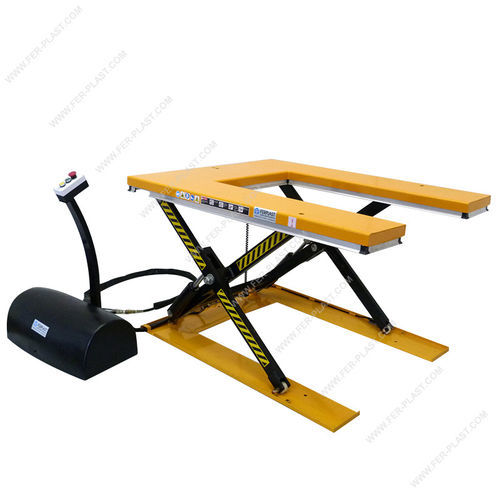

Fixed scissor lift FPHU 1000

hydraulic

Lifting platform single pantograph with U or E profile (FPHU/FPHE 1000) for the insertion of the pallet. On request, it is possible to make a modification to the platform transforming the profile from U to E in order to have a central support for the pallet. This variant guarantees the lifting of heavy pallets without risk of flexing. For correct operation of the platform, the load must be distributed evenly regardless of the type of profile in use. Features: - Structure in high thickness sheet steel - Construction according to European safety standards - Electrohydraulic control unit externally positioned - Keypad with protection IP 54 positioned on the hydraulic power pack - Security aluminium perimeter on the upper platform - Hydraulic power unit designed for intermittent use by 30% - Hand control with low voltage controls - Hydraulic system with a safety valve for overload - Control valve for descent speed - Large hydraulic cylinders with fall arrest-valve in case of breakage of the pipes - Joints with self-lubricating bushings - Lifting hooks removable for transportation and installation - Mechanical lock for maintenance - Painting with yellow RAL 1028 - Suitable only and exclusively for lifting goods with a uniformly distributed load Note: The internal width for the pallet truck passage, in the FPHU1000 model, is 585 mm for a length of 1075 mm. Can load and lift pallets 800x1200 and 1000x1200 mm with a weight of 1000 kg. Model: FPHU1000, FPHE 1000 - Load capacity: 1000 kg - Minimum height: 85 mm - Maximum height: 860 mm - Plan size: 1140×1450 mm - Lifting speed: 25-35 s - Power supply: 380v/50HZ, AC - Power: 0.75 kW - Weight: 280 kg OPTIONAL Increase for modification to the electrical panel for transformation from three-phase model to single-phase model. The change can only be requested at the time of ordering.
