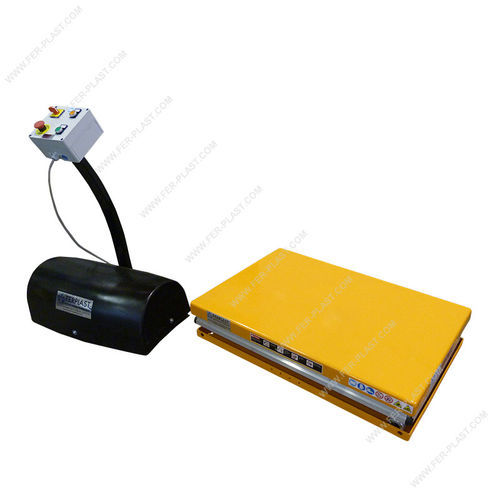

Fixed scissor lift HZ 1001

electro-hydraulichydraulic

Lifting Platform Electro-Hydraulic HZ 1001 (Small Size) The HZ series lifting platforms are lifting equipment to be installed in a fixed position and are operated by an electrohydraulic control unit. Manufactured according to the anti-accident guidelines, they consist of two lower and upper planks and a pantograph system operated by a hydraulic cylinder. Technical Features: - Sturdy structure - Construction according to CE safety standard - Top plate in smooth sheet - Aluminum safety perimeter on the top deck - European production hydraulic control unit, positioned externally, designed for intermittent use of 30% - Pushbutton with low voltage controls - Hydraulic system with overload safety valve - Control valve for descent speed - Over-dimensioned hydraulic cylinder with anticadut valve in case of pipe breakage - Safety distance between the arms of the pantograph - Self-lubricating sleeves - Removable lifting hooks for transport and installation - Yellow color RAL 1028 painting - Suitable only and exclusively for lifting goods with a uniformly distributed load Model: HZ 1001 - Load: 1000 kg - Minimum height: 180 mm - Maximum height: 770 mm - Plan size: 610x916 mm - Base size: 585x896 mm - Lifting time: 15-20 sec. - Power supply: 380V/50 Hz, AC - Power: 1.1 Kw - Net weight: 115 kg Optional: Increase for modification to the electrical panel for transformation from three-phase model to single-phase model. The change can only be requested at the time of ordering.
