Fixed scissor lift HDLND2000

hydraulic

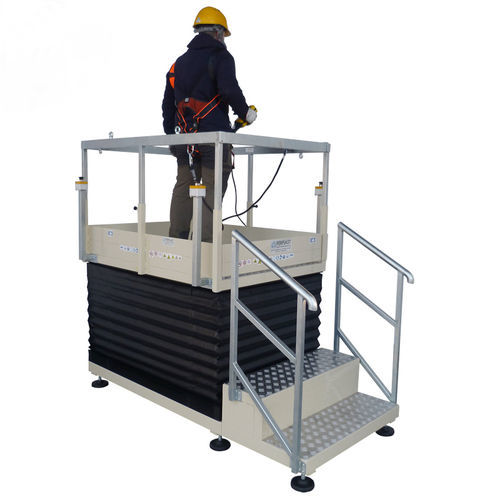

HDLND 2000 MAINTENANCE PLATFORM Our lifting platform, designed specifically for lifting people for work at height and maintenance, offers a combination of robustness and advanced functionality. Made of high quality steel, it has a forkliftable structure with pallet truck, ensuring ease of handling and versatility of use. Made with a sturdy double pantograph steel structure to guarantee a maximum lifting of 1940 mm, with a capacity of 300 kg, suitable for lifting a maximum of 2 people. 4 buttons to stop the CD ascent. Anti-crushing devices positioned at a height of 500 mm, and a recessed parapet with manual latch closure on the two short sides, to allow people to enter and facilitate work at heights. The steps and the upper platform are made entirely of non-slip checkerboard aluminum to increase safety during use. The push button panel with low voltage controls is positioned inside the platform allowing direct control from above. TECHNICAL FEATURES: - Hydraulic power unit positioned internally, designed for 30% intermittent use - Hydraulic system with overload safety valve - Control valve for descent speed - Oversized hydraulic cylinders with anti-fall valve in case of pipe breakage - Joints with self-lubricating bushings - N. 4 eyebolts for harness attachment - Descent control on the lower frame in case of emergency MODEL: HDLND 2000 Load: 300 Kg Minimum height: 550 mm Maximum height: 1940 mm Floor dimensions: 960 x 1410 mm Basic dimensions: 970 x 1420 mm Lifting time: 35 - 45 sec. Electrical supply: 380 V - 50 Hz Power: 2.2 Kw Acoustic emission: 70 dB Machine dimensions completely lowered: 1050 x 2100 x 1300 mm Platform weight: 563 Kg
