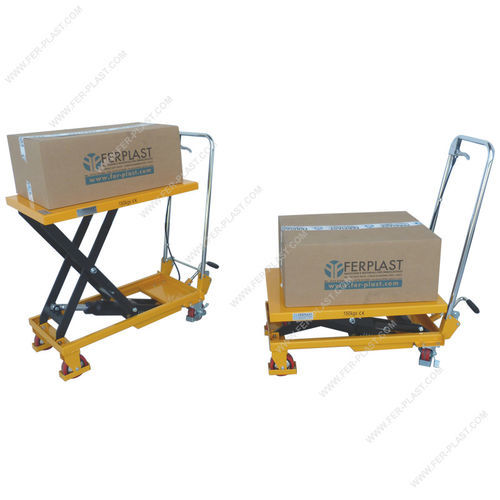

Wheeled scissor lift FP SPA series

fixedhydraulic

Wheeled lifting platforms with single pantograph, hydraulic foot pedal pump, 4 wheels (2 fixed and 2 steering), brake, chrome handle for pushing, hand lever for the controlled speed descent, oven painting. - Lifting platforms with simple pantograph - Load capacity: 150-800 Kg MODEL | FP SPA 150 | FP SPA 200 | FP SPA 300 | FP SPA 500 | FP SPA 800 | N_1000 Load | 150 Kg | 200 Kg | 300 Kg | 500 Kg | 800 Kg | 1000 Kg H max. plan | 740 (720 mod. FPNP150) | 1000 mm | 900 mm | 900 mm | 1000 mm | 990 mm H min. plan | 225 mm | 340 mm | 340 mm | 340 mm | 420 mm | 380 mm Dim. plan | 740x450 mm (700x450 mod.FPNP150) | 1000X500 mm | 855x500 mm | 855x500 mm | 1000x510 mm | 1016x510 mm Plan thickness | 35 mm | 35 mm | 50 mm | 50 mm | 55 mm | - D wheels mm | 100 mm | 200 mm | 127 mm | 127 mm | 150 mm | - Weight | 44 Kg | 60 Kg | 75 Kg | 85 Kg | 115 Kg | 122 Kg Dimensions | 450x900 mm | 600x1180 mm | 500x1080 mm | 1080x500 mm | 580x1330 mm | - Height tot. | 940 mm | 1060 mm | 960 mm | 970 mm | 1000 mm | - - Hydraulic foot pedal pump - 4 wheels (2 fixed, 2 steering) - Brake - Chrome handle for pushing - Hand lever for controlled speed descent - Oven painted finish Technical Specifications / Features: - Load capacity: 150-1000 Kg depending on model - Platform dimensions: from 700x450 mm to 1016x510 mm - Maximum platform height: up to 1000 mm - Minimum platform height: from 225 mm to 420 mm - Platform thickness: 35 mm to 55 mm - Wheel diameter: 100 mm to 200 mm - Weight: 44 Kg to 122 Kg - Finish: oven painted - Optional roller conveyor available for some models - Retaining rails available as accessory
