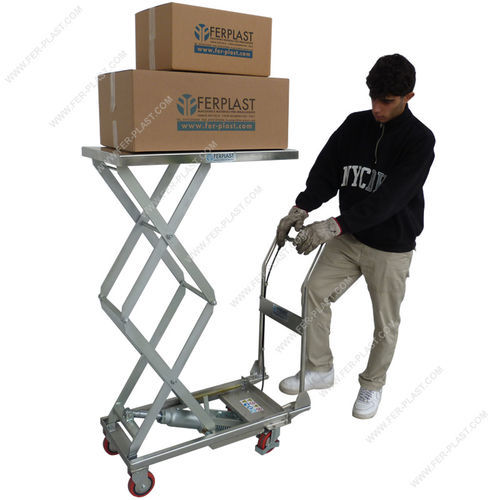

Wheeled scissor lift FPH-LX series

fixedhydraulic

Wheeled platforms made of AISI 304 stainless steel with hydraulic lifting by pedal and release by lever placed on the rudder. They are available with single or double pantograph and are equipped with two fixed and two pivoting nylon wheels. The frame is completely in stainless steel while the pantograph and the pump are in galvanized steel. - Single/double pantograph wheeled platforms made of AISI 304 stainless steel. MODEL | FPH-LX 10D | FPH-LX 30S | FPH-LX 35D | FPH-LX 45S Load | 100 kg | 250 kg | 350 kg | 450 kg Pantograph | double | single | double | single Plan size | 700x445 mm | 815x500 mm | 815x500 mm | 815x500 mm Rudder height above ground | 990 mm | 990 mm | 990 mm | 990 mm Maximum plan height | 1220 mm | 890 mm | 1295 mm | 890 mm Minimum plan height | 250 mm | 290 mm | 355 mm | 290 mm - Hydraulic lifting by pedal - Release by lever on the rudder - Two fixed and two pivoting nylon wheels - Frame: stainless steel - Pantograph and pump: galvanized steel Technical Specifications / Features: - Material: AISI 304 stainless steel (frame), galvanized steel (pantograph and pump) - Available models: FPH-LX 10D, FPH-LX 30S, FPH-LX 35D, FPH-LX 45S - Load capacities: 100 kg, 250 kg, 350 kg, 450 kg - Pantograph types: single or double - Plan sizes: 700x445 mm, 815x500 mm - Rudder height: 990 mm - Maximum plan height: 890 mm to 1295 mm (depending on model) - Minimum plan height: 250 mm to 355 mm (depending on model) - Wheels: 2 fixed, 2 pivoting, nylon - Lifting: hydraulic, pedal-operated - Release: lever on rudder
