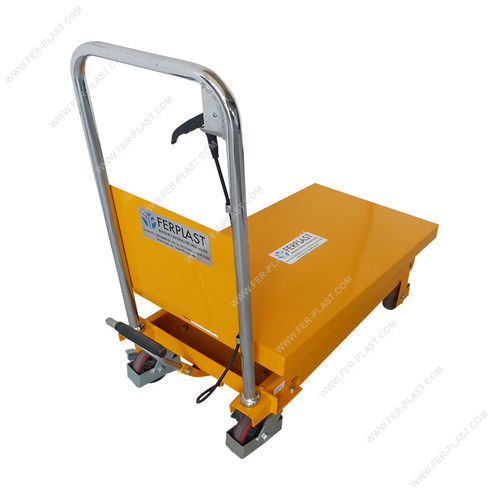

Wheeled scissor lift FP SPA D series

fixedroller

Double pantograph lifting platforms with pedal pump, 4 wheels (2 fixed and 2 pivoting), holding brake, chrome handle for pushing, hand lever for controlled descent, enamel paint dried in the oven. - Wheeled platforms with double pantograph, load capacity: 150-680 Kg. Model: - FP SPA 150 D - FP SPA 350 D - FP SPA 680 D Capacity (Kg): - 150 - 350 - 680 Max. lift height (mm): - 1100 - 1300 - 1500 Min. height of table (mm): - 300 - 350 - 474 Table size (mm): - 700 x 450 - 910 x 500 - 1220 x 610 Table thickness (mm): - 35 - 52 - 55 Wheel diameter (mm): - 100 - 127 - 150 Weight (Kg): - 64 - 110 - 170 Overall dimensions (mm): - 450x900x940 h - 500x1100x970 h - 600x1450x1040 h Optional roller conveyor for: - FP SPA 150 D - Max capacity 150 Kg - FP SPA 350 D - Max capacity 200 Kg - FP SPA 680 D - Max capacity 200 Kg Technical Specifications: - Pedal pump operation - 4 wheels: 2 fixed, 2 pivoting - Holding brake - Chrome handle for pushing - Hand lever for controlled descent - Oven-dried enamel paint
