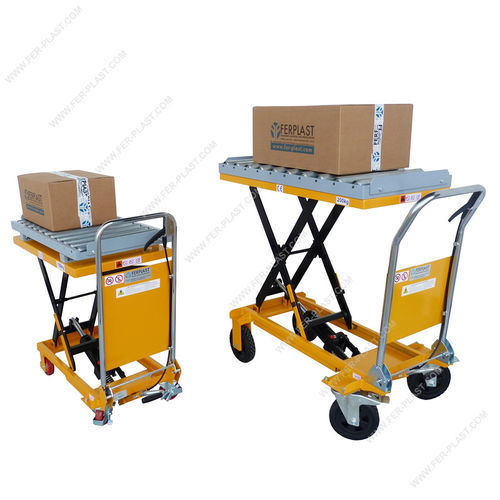

Lifting trolley FP SPA

stainless steelhydraulicplatform

Special trolleys for lifting platforms are designed and manufactured with options and accessories tailored to customer needs. These wheeled platforms can feature single, double, triple, or quadruple pantographs, are manually pushed, and the ascent is managed electronically or with a hydraulic pedal pump. Maneuverable with 4 wheels, 2 fixed and 2 steering, equipped with a parking brake, chrome handle for pushing, manual lever, or electronic remote control for controlled descent speed. Available in painted or stainless steel. Example of platforms that can be modified with a single pantograph: - Model FP SPA: 150, 200, 300, 500, 800, N_1000 - Capacity: 150-1000 kg - Maximum height: 740-1000 mm - Minimum table height: 225-420 mm - Board dimensions: 740x450 mm to 1016x510 mm - Board thickness: 35-55 mm - Wheel diameter: 100-200 mm - Weight: 44-122 kg - Overall dimensions: 450x900x940 mm to 580x1330x1000 mm The platform can be: - With a width ranging from 450 mm to 510 mm - A length of 740 mm to 1000 mm - Load capacity from 150 kg to 1000 kg - With side rails for the containment of packages - With roller table Customizable options and accessories include manual or electronic ascent management, hydraulic pedal pump, 4 wheels with parking brake, chrome handle for pushing, manual lever or electronic remote control for descent, and painted or stainless steel construction.
