Wheeled scissor lift FPMLT300

hydraulic

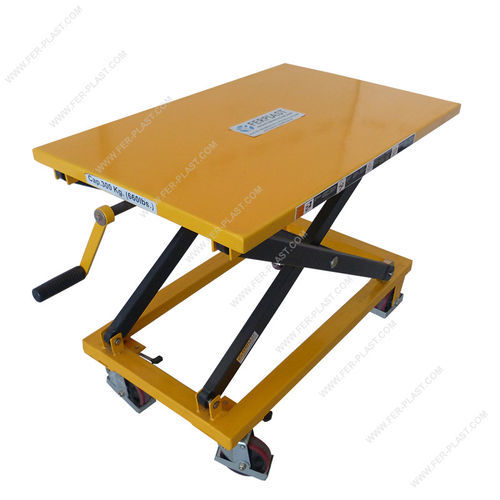

Single pantograph wheeled mechanical platform with crank drive. Mechanical platform with wheels and single pantograph with actuation by crank. The platform consists of a sturdy steel frame and is equipped with polyurethane wheels with locking brake. The movement ascent and descent takes place through the actuation of a crank with threaded pin which opens and closes the pantograph. Turning the handle clockwise opens the pantograph and the platform is lifted, naturally turning counterclockwise this lowers. (is the system of mechanical cric). The mechanical crank platform is used primarily as a work surface and where you have to make a few lifting because it is slower than the hydraulic models. It is also suitable for assembly of molds or mechanical components in tight spaces because it does not have the driving tiller and is not bulky. - MODEL: FPMLT300 - Capacity: Kg. 300 - Min height: 440 mm - Max height: 1000 mm - Wheels diameter: 100 mm - Dimensions: 600x950 mm - Overall dimensions: 600x950x440h mm - Net weight: 60 Kg - Platform single pantograph, with wheels and crank. Ideal for mechanical repairs. Technical Specifications / Features: - Model: FPMLT300 - Capacity: 300 kg - Minimum height: 440 mm - Maximum height: 1000 mm - Wheels diameter: 100 mm - Platform dimensions: 600 x 950 mm - Overall dimensions: 600 x 950 x 440h mm - Net weight: 60 kg - Frame: Sturdy steel - Wheels: Polyurethane with locking brake - Operation: Manual crank with threaded pin - Application: Suitable for assembly of molds or mechanical components in tight spaces, work surface, mechanical repairs
