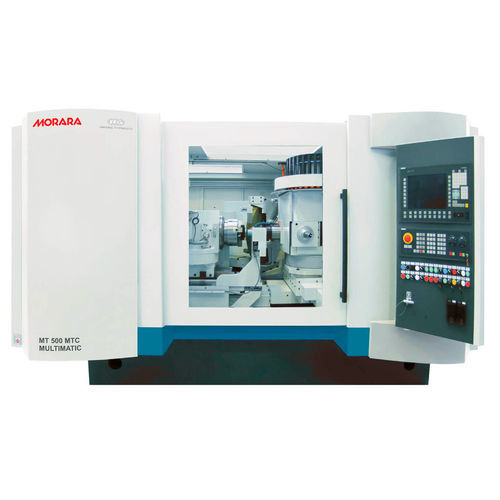

External cylindrical grinding machine MORARA MT MULTIMATIC series

internal cylindricalfor gearsfor shaft

Morara MT Multimatic external and internal cylindrical grinding machines feature a cross slide and a turret for up to four grinding wheel spindles. This universal grinding machine enables simultaneous "fly" grinding of inner and outer diameters and scraping on medium-sized workpieces up to 500 kg with a length up to 250 mm, a diameter up to 500 mm and a height up to 300 mm. ADVANTAGES HOW TO BENEFIT FROM MORARA MT MULTIMATIC EXTERNAL AND INTERNAL CYLINDRICAL GRINDING MACHINES ENHANCED PERFORMANCE Morara MT Multimatic grinding machines have a machine bed made of stabilized cast iron or synthetic granite for enhanced rigidity and precision. This multi-tasking grinding machine enables simultaneous grinding of inner and outer diameters and scraping on medium-sized workpieces weighing up to 500 kg with a length up to 250 mm, a diameter up to 500 mm and a height up to 300 mm. HIGH-PRECISION INTERNAL GRINDING Morara MT Multimatic grinding machines offer a longitudinal (Zi-axis) and a cross carriage (Xi-axis) for internal grinding. Both are mounted on linear guides with high-precision rollers and in combination with the recirculating roller bearing they ensure a resolution of only 0.0001 mm. The grinding wheel holder group on the turret is controlled by a direct drive. The angular position is programmable via CN, from - 20° to + 230° with a resolution of 0.00017°. HIGH-PRECISION EXTERNAL GRINDING Morara MT Multimatic grinding machines use a longitudinal (Ze-axis) and a cross carriage (Xe-axis) for external grinding. Both are mounted on linear guides with high-precision rollers and in combination with the recirculating roller bearing they ensure a resolution of only 0.0001 mm.
