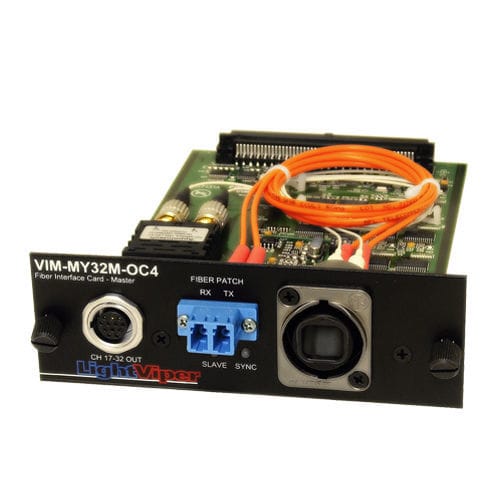

Digital I/O card LightViper VIM-MY32

for fiber optics16 digital inputs8 digital outputs

The LightViper VIM-MY32 YGDAI cards are designed for use with Yamaha™ digital equipment containing YGDAI (Yamaha General Digital Audio Interface) card slots. The VIM-MY32 cards are used in place of the VIM-1832 at the “tail” or mixer end of the system. The VIM-MY32 cards can be used in connection with the VIS-1832 or VIS-4832. When used with the VIS- 4832 and Yamaha™ AD8HR mic pre-amps, The Yamaha™ AD8HR mic pre-amps can be remotely controlled through the LightViper system using a Yamaha™ console. VIM-MY32M Master Card – this card provides 16 direct digital inputs (sends) and 8 digital outputs (returns) from the Yamaha™ device. The VIM-MY32M comes standard with LC fiber connectors however it can also be fit with ST, Neutrik Duo or Neutrik Quad tactical connectors. The VIM-MY32M contains multimode optics (singlemode optional). The VIM-MY32M contains the clock for the LightViper system. There is an internal switch to select whether the VIM-MY32M is the master clock, or whether the VIM-MY32M will slave to the consoles master clock. The VIM-MY32 cards only operate at 48k. The VIM-MY32M provides 2 fiber-optic pass thru connectors which allow inputs 17-32 to be fed into a second master card. There is a “sync” status LED on the front of the VIM-MY32M. This LED will be solid green when in sync, flashing red and green while looking for sync, and solid red when no sync is present. The VIM-MY32M contains a Neutrik MiniCon® connector to enable connection to the VIM-MY32S slave card. VIM-MY32S Slave Card – there is no fiber-optic connection to the VIM-MY32S slave card.
