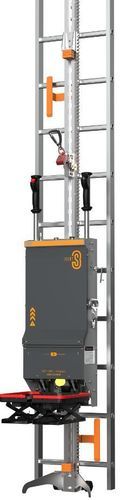

Electric powered ascender T150

compact

Overview
The T150 Tower Climber is a specialized vertical-access solution for tower cranes and confined-space installations. It provides battery-powered rack & pinion assistance to reduce operator fatigue and maintain alertness after long ascents. The compact, wireless unit is designed for retrofit mounting inside existing ladder ways and confined shafts to deliver an immediate safety and ergonomics improvement for high-altitude workstations.

Features

• Compact structural design
• Lithium battery powered
• Multiple fall protection systems
• Wireless operation
• 3S rack & pinion drive

Advantages

• Minimal obstruction on the ladder way
• Independent power source; no trailing cables
• Integrated safety brakes and overspeed protection
• Remote control capability

Benefits

• Retrofit compatibility: fits inside existing tower crane mast sections and confined shafts
• Installation simplicity: no complex electrical runs required up the tower
• Operator safety: redundant arresters and mechanical stops protect users during failures
• Emergency response: can be used for unmanned material delivery or evacuation assistance

Key Product Features (Detailed)

• Upper-End Stop with Buffer: Two mechanical end stops with buffers are installed at the upper and lower ends of the guide rail to prevent overrunning in case of switch failure.
• Operator Fall Arrester: The operator fall arrester connects to the guide rail and a full-body harness; it locks inside the guide rail immediately if a fall occurs to prevent serious injury.
• Manual Descent Function: In the event of sudden power loss, the manual descent lever allows controlled, safe lowering of the car.
• Car Fall Arrester: Located on the car and running inside the guide rail, this arrester locks instantly in case of a fall to hold the car in place.
• Overload Protection System: On overload the unit sounds an alarm and cuts power, stopping operation until the overload condition is corrected.
• Lower-End Stop with Buffer: Redundant mechanical end stops with buffers at both ends of the guide rail prevent carriage overrun.

Applications

• Grain silos
• Grid towers
• Commercial solar installations
• Hydropower facilities
• Industrial plants
• Tower cranes
• Oil & gas platforms
• Automated storage systems
• Perimeter protection installations
• Chimneys and stacks

Product Details
The Tower Climber reduces operator fatigue during extended vertical climbs and improves safe access to tower-mounted workstations. It runs from an independent lithium battery pack, uses a rack & pinion drive, and integrates multiple redundant safety systems including operator and car fall arresters, mechanical end stops with buffers, overload protection and a manual descent capability. Designed for retrofit into existing ladder ways and confined shafts.

Technical specifications

• Model: T150
• Rated Load: 150 kg (1 person + tools)
• Operational Range: ≤ 1500 m (40 round trips on 40 m tower)
• Max. Lifting Height: 200 m
• Rated Speed: 18 m/min (approx. 2 minutes to reach top of 40 m)
• Battery Capacity: 15.6 Ah
• IP Rating: IP65
• Operational Temperature: -20°C to +55°C
• Design Life: 20 years
• Standards: Directive 2006/42, EN 1495
