Horizontal lifeline TF series

steadyflexibleEN 795

Product overview

• The horizontal fall protection system (lifeline) is an anchored, continuous fall-arrest system designed to allow personnel to work safely at height with freedom of movement along a predefined route (roofs, facades, platforms, industrial structures).

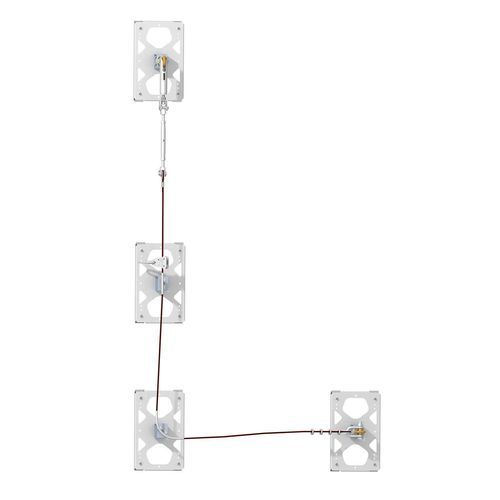

• The system can be installed in straight runs or around corners; the movable anchor (traveller) slides along the wire rope and passes supports without removal, enabling continuous movement.
• Designed for simultaneous use by multiple users and for a range of maintenance and access tasks.
• On arrest, integrated shock absorption and system geometry reduce peak forces to limit fall impact on the user and anchoring structure.
• Primary components are manufactured in stainless steel for corrosion resistance and wide environmental suitability.

Key components

• End Anchor: Fixed anchor point and bracket in stainless steel 316L; CE certified, compliant with EN 795:2012.
• Intermediate Support: Welded support allowing travellers to pass smoothly without removal; spaces maintained to limit rope sag.
• Turn Support: Corner support designed for smooth rope passage and traveller movement around bends.
• Tensioner: Device to tension the lifeline, reduce lateral displacement during a fall, and limit fall height and impact forces.
• Shock Absorber: Energy-absorbing element that mitigates arrest forces to protect personnel and structure.
• Movable Anchor (Traveller): Runs along the lifeline, negotiates intermediate and turn supports smoothly, and can be assembled/disassembled at any position.
• Wire Rope: Available in zinc-coated, stainless steel 304 or 316; diameters specified per model.

Specifications table
Model: TF-SH80
Material: Stainless steel 304 / 316
Wire rope diameter: 8.0 mm
Rated load: 12 kN
Intermediate support spacing: ≤ 12 m
Applicable fall arrester: TF-H10
Standard: EN 795:2012
Certification: CE
Customization: Customized design and manufacturing

Model: TF-SH10
Material: Stainless steel 304 / 316
Wire rope diameter: 9.5 mm
Rated load: 12 kN
Intermediate support spacing: ≤ 12 m
Applicable fall arrester: TF-H10
Standard: EN 795:2012
Certification: CE
Customization: Customized design and manufacturing

Model: TF-SH83
Material: Stainless steel 304 / 316
Wire rope diameter: 8.3 mm
Rated load: 12 kN
Intermediate support spacing: ≤ 12 m
Applicable fall arrester: TF-H10
Standard: EN 795:2012
Certification: CE
Customization: Customized design and manufacturing


Additional notes

• System layout supports both straight and corner configurations.
• Traveller / movable anchor passes supports without removal for uninterrupted movement along the line.
• Wire rope options: zinc-coated, stainless steel 304 or 316 to suit environmental conditions.

Technical specifications

• Models: TF-SH80, TF-SH10, TF-SH83
• Materials: Stainless steel 304 or 316 (end anchor specified as 316L)
• Wire rope diameters: 8.0 mm (TF-SH80), 9.5 mm (TF-SH10), 8.3 mm (TF-SH83)
• Rated load: 12 kN
• Intermediate support spacing: ≤ 12 m
• Applicable fall arrester: TF-H10
• Standards: EN 795:2012
• Certification: CE
• Customization: Custom design and manufacturing available
