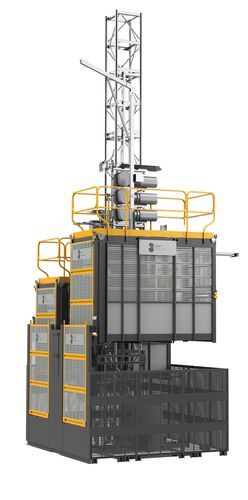

Rack-and-pinion elevator CH Series

electricmotorizedfor the construction industry

Overview
The CH Series Construction Hoist is engineered for high-cycle high-rise construction logistics. Available in single-cage (CH200) and twin-cage (CH200/200) configurations, the system uses gear-driven rack-and-pinion motion and variable-frequency control to transport personnel and materials at selectable speeds up to 63 m/min. Designed for continuous site operation, the CH Series balances throughput, safety devices and energy-efficient drive options to support demanding construction schedules.

Features

• Twin-cage capability for simultaneous two-cage operation
• Selectable high speeds up to 63 m/min
• Energy-efficient variable-frequency control (VFC/VFD)

Advantages

• Doubles vertical transport capacity on a single mast configuration
• Fast vertical travel to reduce transit time
• Reduced inrush/starting current for improved site power management

Benefits

• Logistics throughput: Supports peak shift changes and concurrent material deliveries
• Operational efficiency: Minimizes waiting and transfer time to upper floors
• Cost control: Lowers site energy consumption and peak power demand

Product Details

• Safety Device: Overspeed lock automatically engages if descending speed exceeds the rated limit; power to the hoist is cut and the cage stops immediately.
• Tie-in (Anchoring): Structural anchor system that secures the mast to the building, restrains sway and transfers lateral loads to maintain stable vertical lifting.
• Drive Unit: Gear motor driving the pinion along the rack to produce positive, controlled vertical movement.
• Mast Section: Primary load-bearing, modular mast sections providing vertical guidance and extendable to required working heights.
• Rack and Pinion Drive: Forced drive system delivering accurate positioning and high holding capacity.
• Variable-frequency Drive (VFD) Unit: Controls hoist logic and provides smooth start/stop operation; supports smart control and voice module integration for passenger comfort and operational control.

Specifications (table)
Model : CH200 (Single) | CH200/200 (Twin)
Rated Load : 2000 kg | 2000 / 2000 kg
Speed : 0–46 m/min or 0–63 m/min | 0–46 m/min or 0–63 m/min
Control System : VFC (VFD)
Motor Power : 2×11 / 2×18.5 / 3×11 / 3×18.5 kW | 2×(2×11) / 2×(3×18.5) kW
Cage Dimensions : 3200 × 1500 × 2200 mm | 3200 × 1500 × 2200 mm
Max Height : up to 300 m (extendable by adding mast sections)

Technical specifications

• Series: CH Series
• Configurations: Single cage (CH200) and Twin cage (CH200/200)
• Rated load (single): 2000 kg; (twin): 2000 / 2000 kg
• Operating speeds: selectable 0–46 m/min or 0–63 m/min
• Control: Variable Frequency Control (VFC / VFD)
• Motor power options: 2×11 kW, 2×18.5 kW, 3×11 kW, 3×18.5 kW; twin: 2×(2×11) or 2×(3×18.5) kW
• Cage dimensions: 3200 × 1500 × 2200 mm
• Maximum working height: up to 300 m (extendable mast)
• Drive: Rack and pinion forced-drive
• Key components: overspeed safety lock, tie-in anchoring system, gear drive unit, mast sections, rack & pinion, VFD with smooth start/stop and smart control/voice module
