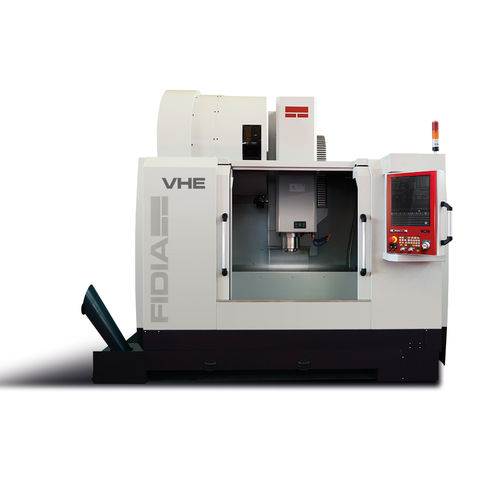

3-axis CNC machining center VHE
verticalcompacthigh-performance

3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
3-axis CNC machining center
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Other characteristics
compact, high-performance
X travel

1,100 mm, 1,600 mm (43 in)

Y travel

610 mm, 815 mm (24 in)

Z travel

610 mm, 700 mm (24 in)

Rotational speed

6,000 rpm (37,699 rad.min-1)

Power

18.5 kW (25.15 hp)

Description

Starting from the compact version VHE1166 (1.100x610x610) mm, the VHE machining centers standout for the high robustness of their cast iron structure. Such a structure allows for high removal volumes of material, and is extremely indicated for all the applications like stamping dies, and mechanical machining, requiring high spindle torque. High performance 3-axis machines with a moving table. The C-frame structure, with an extremely robust base and column, is generously proportioned to guarantee maximum rigidity, stability, lasting quality and accuracy. VHE models are equipped with reinforced box-type guideways in hardened steel, specifically for heavy duty removal.
