5-axis machining center Go5

verticalwith moving tablegantry

Overview

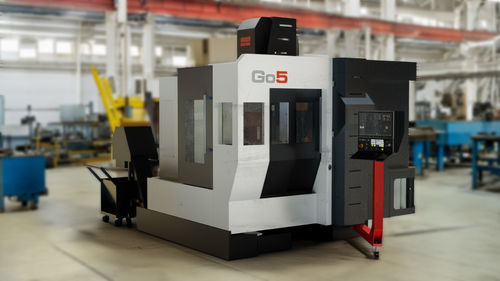

The FIDIA Go5 is a 5-axis high-speed milling centre with a fixed gantry and moving table configuration, engineered to deliver maximum rigidity within a compact footprint. The monobloc structure is entirely produced from heavy cast iron castings to ensure thermal stability and high vibration damping across all machining operations. A 45° inclined base optimises integration of the tilting/rotary table and promotes natural chip fall toward the evacuation system.

Highlights

• Accessibility: Two large sliding doors enable front and side loading of workpieces.
• Installation: Structural rigidity avoids the need for special foundations on suitable industrial floors.
• Chip management: Integrated front auger and rear conveyor supplied as standard.

Structure
The Go5 follows a fixed-gantry architecture with a moving table, made from high-mass cast iron castings to prioritise dynamic stability. This construction provides excellent vibration damping typical of high-speed machining, superior thermal behaviour and reduced geometric drift over long cycles. The 45° inclined base acts as a load-bearing element, distributing mass for torsional rigidity and sustained accuracy across the working volume.

Plug & Play Installation
Designed for logistical flexibility: the cast iron monoblock allows installation on good-quality industrial floors without special foundations. Leveling is performed via anti-vibration mounts to reduce commissioning time. The self-supporting structure permits relocation and lifting without compromising original geometric alignment and precision.

Milling unit
The Go5 can be fitted with two spindle families to meet production needs from high-speed roughing to ultra-precision finishing. Each spindle is supported by closed-circuit cooling for bearings and windings. Bearings receive minimal air/oil lubrication automatically managed to ensure longevity under continuous high-speed operation.

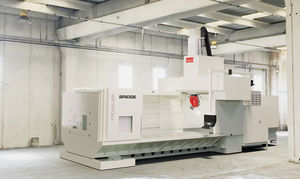

Technical Specifications and Layout (D321 extract)
D321 strokes | X: 3000 mm | Y: 2200 mm | Z: 1100 mm
Axis speed: 24 m/min
Table dimensions (D321): 3000 x 2000 mm
Table load capacity (D321): 3500 Kg/m²

Technical Specifications (alternative layout)
Axis strokes: X 600 mm (23.6") | Y 850 mm (33.5") | Z 450 mm (18")
Axis speed: 30 m/min
B - Tilting (Table): ±180°
C - Rotary (Table): 360° continuous
Table plate diameter: Ø400 mm (15.7")
Max. table load capacity: 300 kg (660 lb)

Spindle options
M3A/20-18 vs M3A/19-36
Max. spindle speed: 18,000 rpm | 36,000 rpm
Max. power (S1/S6): 11.7 / 20 kW | 17 / 19.5 kW
Max. torque (S1/S6): 26 / 80 Nm | 11 / 12.5 Nm
Toolholder: HSK-A63 | HSK-E50
Spindle cooling: closed-circuit cooling for bearings and windings; bearings lubrication via minimal air/oil system with automatic management.

Characteristics / Technical data

• Model: Go5
• Configuration: Fixed gantry with moving table; 45° inclined base
• Structure material: Heavy cast iron castings (monobloc)
• Approx. overall weight: ~8,000 kg
• Accessibility: Front and side loading via two large sliding doors
• Foundation: No special foundations required on suitable floors; anti-vibration mounts for leveling
• Chip management: Integrated front auger and rear conveyor
• D321 strokes (layout): X 3000 mm, Y 2200 mm, Z 1100 mm
• D321 axis speed: 24 m/min
• Table dimensions (D321): 3000 x 2000 mm
• Table load capacity (D321): 3500 Kg/m²
• Alternative axis strokes: X 600 mm; Y 850 mm; Z 450 mm
• Axis speed (alternative layout): 30 m/min
• Table plate diameter: Ø400 mm
• Table max load capacity: 300 kg
• B - Tilting (Table): ±180°
• C - Rotary (Table): 360° continuous
• Spindle options: M3A/20-18 (18,000 rpm, 11.7/20 kW, 26/80 Nm, HSK-A63) and M3A/19-36 (36,000 rpm, 17/19.5 kW, 11/12.5 Nm, HSK-E50)
• Spindle cooling: Closed-circuit cooling for bearings and windings
• Bearings lubrication: Minimal air/oil lubrication, automatic management
