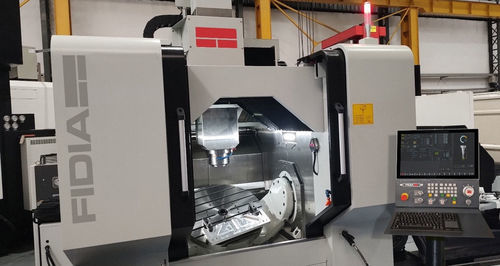

5-axis machining center Go9

verticalfor steelfor aluminum

Overview
The Go9 is a 5-axis gantry machining centre engineered for high-speed milling of complex parts in steel, hardened steel, aluminium and titanium. Single-piece cast-iron U-frame gantry provides high rigidity and thermal stability. Compact footprint with no special foundation required and 24 tonnes of damping mass. Direct torque motors on A and C axes and active thermal control across the kinematic chain make the Go9 suited to mold shops, aerospace suppliers and automotive die manufacturers.

Key features

• Full Cast Iron Structure
  Single-piece U-frame base (24 t). No special foundation required. High thermal stability and vibration damping.
• Torque Motor Driven A and C Axes
  Backlash-free motion with direct encoders. Two motors on the A-axis cradle for maximum rigidity. Active cooling on all motors.
• Active Thermal Control
  Dedicated chiller for XYZ ball screws and for A and C direct motors. Refrigerated spindle with independent chiller to prevent thermal elongation.
• High-Speed Ball Screw System
  C3 class, preloaded, coolant-through ball screws on XYZ. Gantry Y axis with dual motors and dual optical scale for symmetric drive.

Applications

• Plastic Injection Molds: Machining of steel and hardened steel for complex, high-precision mold components used in automotive and optical lens production.
• Forging Dies: Hardened-steel dies for hot forging applications in automotive and industrial sectors.
• Aerospace: Brackets, rotating parts for jet engines and structural components in aluminium and titanium.

Technical information (tables)
Technical Notes: All accuracy data according to VDI 3441. Reference conditions: 20°C, max. deviation 3°C, max. variation 1°C/h.

PARAMETER : VALUE
Linear Axes (XYZ) :
X : 800 mm
Y : 900 mm (+330 mm)
Z : 620 mm
Max. Speed (X, Y, Z) : 48 m/min

Machine Data
Footprint : 4400 x 3200 mm
Total Weight : 24 000 kg

SPINDLE OPTIONS
Options : M3A/32-18 (STD) | M3A/35-24 (OPT)
Max. Power S1 / Max. Power S6 : 26 kW / 32 kW | 25 kW / 35 kW
Max. Torque S1 / S6 : 124 Nm / 154 Nm | 83 Nm / 119 Nm
Max Speed : 18 000 rpm | 24 000 rpm
Tool Holder : HSK-A63 | HSK-A63
Spindle Lubrication : Permanent grease | Air/Oil

TOOL MAGAZINE
Standard : 48 pockets (HSK), chain-type, swap arm
Optional : 96 pockets (HSK), disk-type

TRT/800 MILLING TABLE
Table Diameter : Ø 800 mm
Max. Rotation Diameter (swing) : Ø 1000 mm
T-Slots : 9 x 14 mm, pitch 90 mm
Max. load : 1200 / 950 kg
A Axis Travel : ±125°
C Axis Travel : Endless (360° continuous)
Positional Resolution : 0.001°
Clamping Torque C / A : 3000 Nm / 6000 Nm

Note: CNC system images on product page (nC19, C20). Go9 is also available with SIEMENS "Sinumerik ONE" control as an option.
