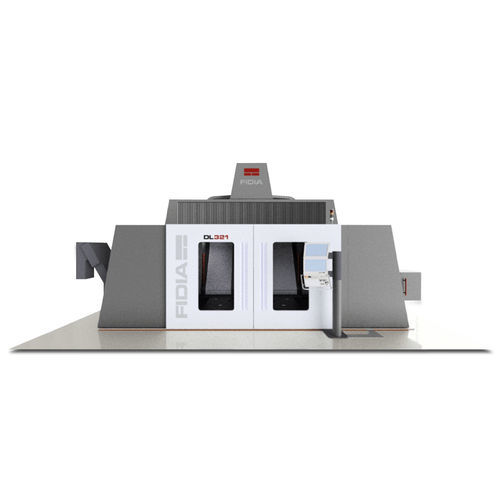

3-axis CNC machining center DL321/Qverticalfor light alloysgantry
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for light alloys
- Structure
- gantry
- Number of spindles
- 2-spindle
- Associated functions
- milling
- Applications
- for the automobile industry, for the aeronautical industry
- X travel
3,000 mm
(118.11 in)- Y travel
2,200 mm
(86.61 in)- Z travel
1,250 mm
(49.21 in)- Work feed Z-axis
30 m/min
Description
With its work-piece table independent from the supporting structure, the machine can be configured in two different set-ups.
Setup 1 – Simply installed on a flat foundation.
Setup 2 – On a dedicated foundation, to increase the spjndle-to-table clearance.
DL321/Q - Features
X Y axis feed rate - 60m/min (2362ipm)
Z axis feed rate - 30m/min (1180ipm)
Table size - 3000x2000mm (118”x79”)
Load capacity - 7000 Kg/m² (166,000 lbs/sqft)
Milling spindles - M5A/55-24, M5A/65-15
